Customising Your Hydraulic Power Units: A Guide

Understanding the Essentials of Hydraulic Power Units

Before delving into customisation, it's crucial to understand what a Hydraulic Power Unit (HPU) is and its significance in various industries. An HPU is a self-contained system that at it's core includes a motor, a hydraulic pump, and a reservoir, with scope for valves and various other components. It plays a pivotal role in providing the energy needed to drive hydraulic machinery by converting mechanical power into hydraulic energy.

The Importance of Customisation

With the wealth of applications that hydraulic systems serve, whilst off the shelf options can be widely effective, customising Hydraulic Power Units is a valuable tool and often necessary to meet the specific needs of your machinery and operations whilst ensuring efficiency, reliability, and safety in your hydraulic systems.

Step-by-Step Customisation Process

Defining the Requirements: The first step in customising your Bespoke HPU is a thorough assessment of your system's requirements. This includes understanding the power needs, the operating environment, and the type of hydraulic fluid to be used.

Selection of Components: Based on your requirements, crucial components such as the motor type, pump capacity, and reservoir size must be chosen to ensure optimal performance. Knowing the flow rate required and maximum operating pressure is always a good place to start!

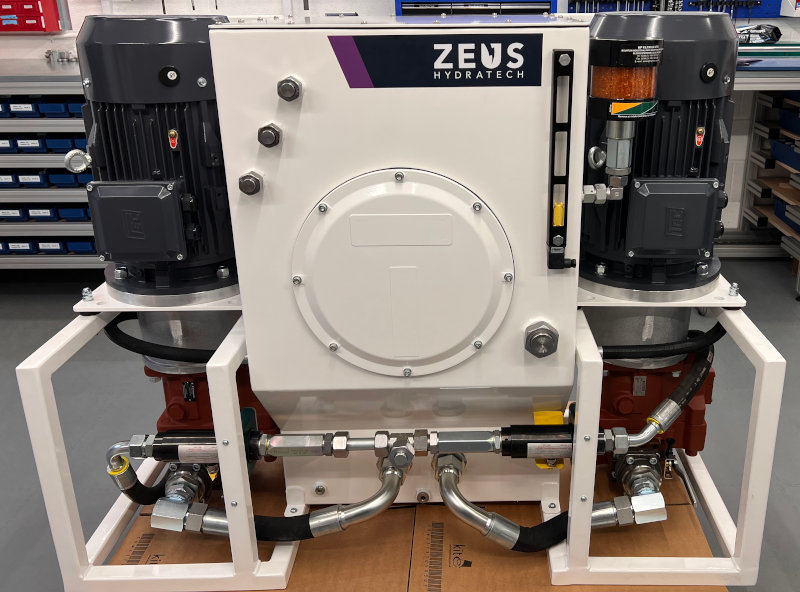

System Layout and Configuration: Customisation also extends to the physical layout of the HPU, where factors such as dimensions, accessibility for maintenance, and connection ports are considered. Zeus Hydratech recently completed a Bespoke customised Hydraulic Power Unit (seen below) that was designed and manufactured to fit through an access hatch on a yacht that was restricted in size. This Bespoke HPU was able to be disassembled in to 3 sections to allow for easy access and then reassembled simply once in situ.

Advanced Customisation Features

Intelligent Controls: Industry is evolving rapidly and you can stay on top of these changes by customising your HPU with an array of smart technology including sensors, PLC's and IoT connectivity. By combining this advanced electronic technology with your Hydraulic System you then allow for better monitoring, precise control, and enhanced automation capabilities.

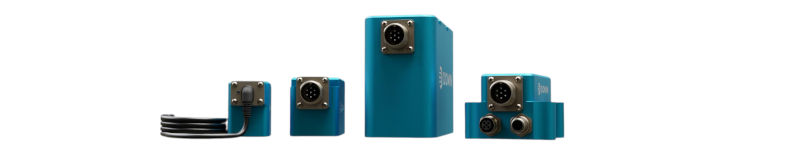

Above: Domin's range of Servo Hydraulic Valves, the S4 Pro, S6 Pro, S10 Pro and S6 Pro X.

Energy Efficiency: Customizing your HPU for energy efficiency entails selecting components and configuring the system in a way that reduces energy consumption without compromising on performance. Utilising technology such as Domin's hydraulic servo valves (seen above) which offer greater efficiency through regenerated energy use, all whilst maintaining high standards in contol and productivity, can bring a large benefit in efficiency to your hydraulic system.

Quality and Compliance

While customising, it is imperative to ensure that your HPU not only meets your operational needs but also adheres to industry standards and regulations. Quality assurance at every step of the customisation process is key to achieving a reliable and compliant hydraulic power unit.

Partnering with Expert Manufacturers

Customising your hydraulic power system can be a complex task, requiring expertise and precision. Partnering with a reputable manufacturer like Zeus Hydratech Limited ensures that your customised HPU is designed and built to the highest standards. By leveraging years of industry experience and technical know-how, Zeus Hydratech stands as the premier choice for businesses looking to customise their hydraulic power units for various industrial, marine, aerospace, and motorsport applications and more.

Maintenance and Support

Post-installation support and maintenance are just as critical as the initial customisation. A reliable manufacturer offers comprehensive after-sales service to keep your customised HPU running smoothly, guaranteeing longevity and operational efficiency.

In conclusion, customising your hydraulic power units equips your industrial machinery with the necessary specifications to meet unique operational demands. By following this guide and collaborating with experienced professionals, you can ensure your HPU is tailored to the specific requirements of your applications, maximising performance and maintaining high safety standards.
