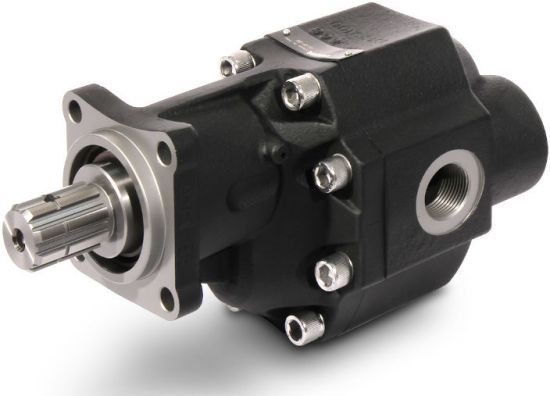

Casappa Formula 20 Series (SFP)

Casappa
Contact us for current availability
View all specifications



The FORMULA gear pumps are made of cast iron in two pieces. A rigid and compact structure that makes it possible to incorporate a number of functions in a limited space. FORMULA gear pumps have provided years of unsurpassed service in heavy duty low drive speed applications such as truck and tractor PTO's. Wide range Mounting flange, shaft, side and rear ports are available in SAE and ISO standards, in both single and multiple units. High efficiency at low speed FORMULA is the only gear pump rated for continuous max. pressure up to 290 bar at minimum speed of 300 rpm. All sizes available as uni or bi-directional pumps & motors.


  • 0.30 in³/rev (4,95 cm³/rev) to 9.20 in³/rev (150,79 cm³/rev)
  • Max. peak pressure up to 4785 psi (330 bar)
  • Max. speed up to 4000 min-1
  • High operating pressures
  • High efficiency at high temperature
  • Exceptional working life expectancy
  • Solid and compact design
  • Custom design
  • Wide range of displacements:

Features

  • High performance also at very low speed
  • Different ports position availability
  • Low noise emission
  • Shaft seal system no leakage guarantee
  • Modular design
  • Direct mounting on the PTOs

Pump Type Displacement Max Pressure Max Speed Min Speed
 FP 20-8  0.50 in³/rev [8.26 cm³/rev]  4060 - 4713 psi  2000 - 4200 min¹  300 min¹
 FP 20-11,2  0.69 in³/rev [11.23 cm³/rev] 4060 - 4713 psi  2000 - 4200 min¹ 300 min¹
 FP 20-16  1.03 in³/rev [16.85 cm³/rev] 4060 - 4713 psi  2000 - 4200 min¹ 300 min¹
 FP 20-20  1.29 in³/rev [21.14 cm³/rev]  3770 - 4205 psi 2000 - 4200 min¹ 300 min¹
 FP 20-25  1.61 in³/rev [26.42 cm³/rev]  3190 - 3770 psi  2000 - 4200 min¹ 300 min¹
 FP 20-31,5 2.01 in³/rev [33.03 cm³/rev]  2755 - 3190 psi  1800 - 4000 min¹ 300 min¹
 FP 20-36 2.19 in³/rev [35.94 cm³/rev]  2465 - 2900 psi  1800 - 4000 min¹ 300 min¹
 FP 20-40  2.42 in³/rev [39.64 cm³/rev]  2320 - 2755 psi 1800 -  4000 min¹ 300 min¹
