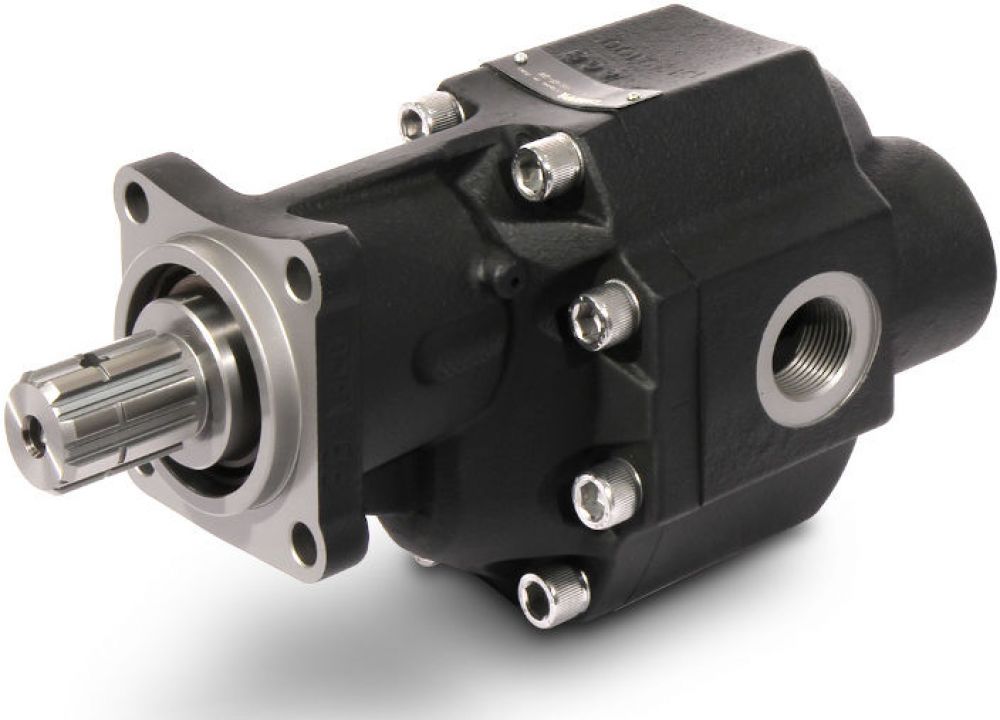

The FORMULA gear pumps are made of cast iron in two pieces. A rigid and compact structure that makes it possible to incorporate a number of functions in a limited space. FORMULA gear pumps have provided years of unsurpassed service in heavy duty low drive speed applications such as truck and tractor PTO's. Wide range Mounting flange, shaft, side and rear ports are available in SAE and ISO standards, in both single and multiple units. High efficiency at low speed FORMULA is the only gear pump rated for continuous max. pressure up to 290 bar at minimum speed of 300 rpm. All sizes available as uni or bi-directional pumps & motors.
| Pump Type | Displacement | Max Pressure | Max Speed | Min Speed |
|---|---|---|---|---|
| FP 30-17 | 1.05 in³/rev [17.28 cm³/rev] | 4205 - 4713 psi | 3000 - 4000 min¹ | 300 min¹ |
| FP 30-27 | 1.63 in³/rev [26.70 cm³/rev] | 4205 - 4713 psi | 3000 - 4000 min¹ | 300 min¹ |
| FP 30-34 | 2.11 in³/rev [34.56 cm³/rev] | 4060 - 4495 psi | 2800 - 4200 min¹ | 300 min¹ |
| FP 30-38 | 2.40 in³/rev [39.27 cm³/rev] | 4060 - 4495 psi | 2800 - 3500 min¹ | 300 min¹ |
| FP 30-43 | 2.68 in³/rev [43.98 cm³/rev] | 3915 - 4350 psi | 2500 - 3500 min¹ | 300 min¹ |
| FP 30-51 | 3.16 in³/rev [51.83 cm³/rev] | 3480 - 4060 psi | 2500 - 3500 min¹ | 300 min¹ |
| FP 30-61 | 3.74 in³/rev [61.26 cm³/rev] | 3190 - 3625 psi | 2000 - 3500 min¹ | 300 min¹ |
| FP 30-73 | 4.50 in³/rev [73.82 cm³/rev] | 2900 - 3335 psi | 1800 - 3500 min¹ | 300 min¹ |
| FP 30-82 | 4.98 in³/rev [81.68 cm³/rev] | 2755- 3190 psi | 1800 - 3500 min¹ | 300 min¹ |
| FP 30-100 | 6.16 in³/rev [100.52 cm³/rev] | 2610 - 3190 psi | 1800 - 3500 min¹ | 300 min¹ |
| FP 30-125 | 7.67 in³/rev [125.66 cm³/rev] | 2320 - 2900 psi | 1800 - 3500 min¹ | 300 min¹ |
