Casappa Magnum 30 Series (HD)

Casappa

View all specifications ~ scroll down to find the part you need ~

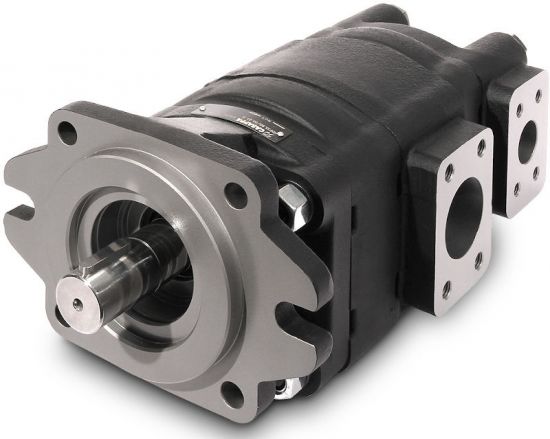

The Casappa Magnum Gear pumps and motors made of cast iron in three pieces. An extremely versatile and reliable design, also in the most extreme operating conditions. Displacements from 17,28 cm³/rev G 1.05 in3/rev to 125,63 cm³/rev G 7.66 in³/rev available in groups 30 and 35. Max. peak pressure up to 320 bar G 4650 psi. Max. speed up to 3000 min‑1.

Features

Wide range of drive shafts and flanges in SAE version
More choices of port locations
Integrated outboard bearings for heavy duty applications
Multiple units available in standard version, common inlet and separated stages.
Exceptional working life expectancy

Downloads & Datasheets

Pump Type	Displacement	Max Pressure	Max Speed	Min Speed
HD 30-17	1.05 in³/rev [17.28 cm³/rev]	4060 - 4640 psi	3000 min¹	350 min¹
HD 30-22	1.34 in³/rev [21.99 cm³/rev]	4060 - 4640 psi	3000 min¹	400 min¹
KP 30-24	1.47 in³/rev [24.03 cm³/rev]	4060 - 4640 psi	3000 min¹	400 min¹
KP 30-27	1.63 in³/rev [26.70 cm³/rev]	4060 - 4640 psi	3000 min¹	400 min¹
KP 30-34	2.11 in³/rev [34.56 cm³/rev]	3915 - 4495 psi	3000 min¹	400 min¹
KP 30-38	2.40 in³/rev [39.27 cm³/rev]	3915 - 4495 psi	3000 min¹	400 min¹
KP 30-43	2.68 in³/rev [43.98 cm³/rev]	3770 - 4350 psi	3000 min¹	400 min¹
KP 30-51	3.16 in³/rev [51.83 cm³/rev]	3335 - 4060 psi	2500 min¹	300 min¹
KP 30-56	3.45 in³/rev [56.55 cm³/rev]	3118 - 3843 psi	2500 min¹	300 min¹
KP 30-61	3.74 in³/rev [61.26 cm³/rev]	2900 - 3625 psi	2000 min¹	250 min¹
KP 30-73	4.50 in³/rev [73.82 cm³/rev]	2755 - 3335 psi	1700 min¹	250 min¹
KP 30-82	4.98 in³/rev [81.68 cm³/rev]	2465 - 3045 psi	1500 min¹	250 min¹
