Continental Hydraulics are at the forefront of engineering hydraulic solutions for over 50 years-a testament to a long-standing reputation built upon your challenges and opportunities. A worldwide leader- a one-stop-shop for valves, pumps, power units and proportional products-all assembled in the USA.

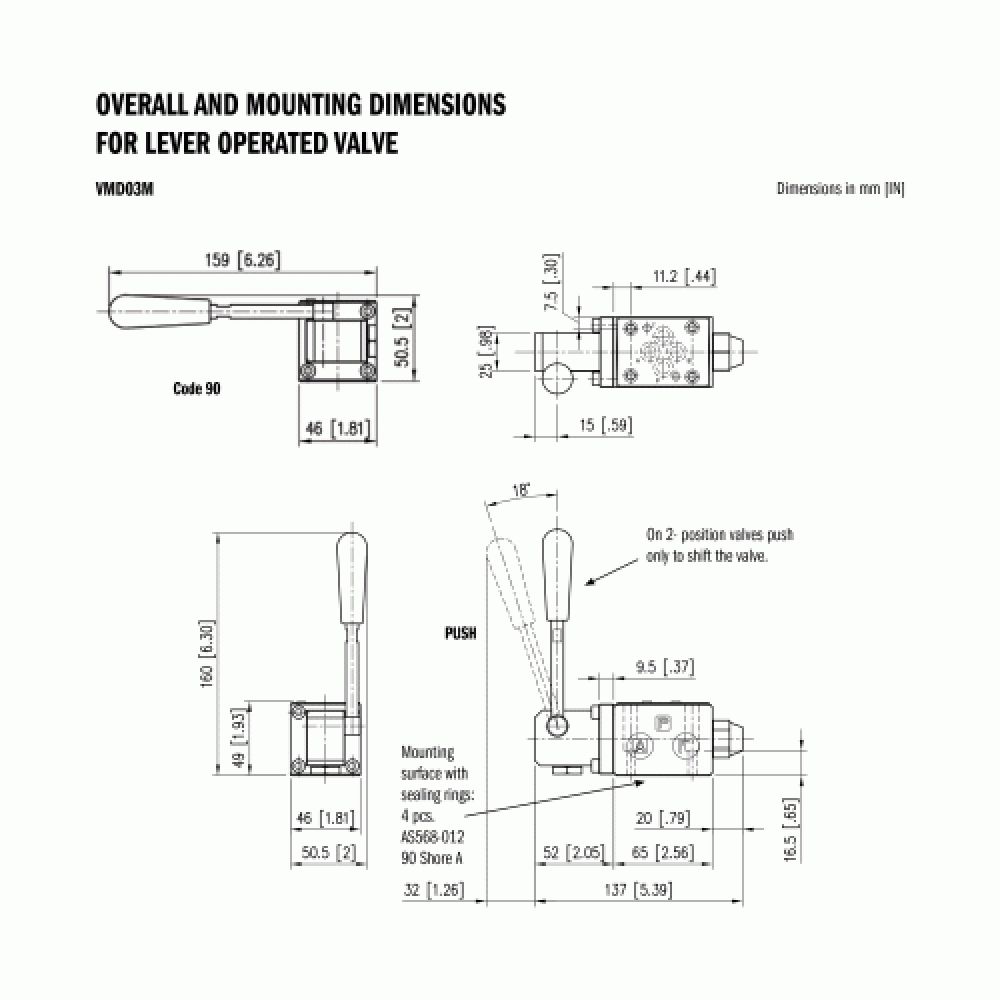

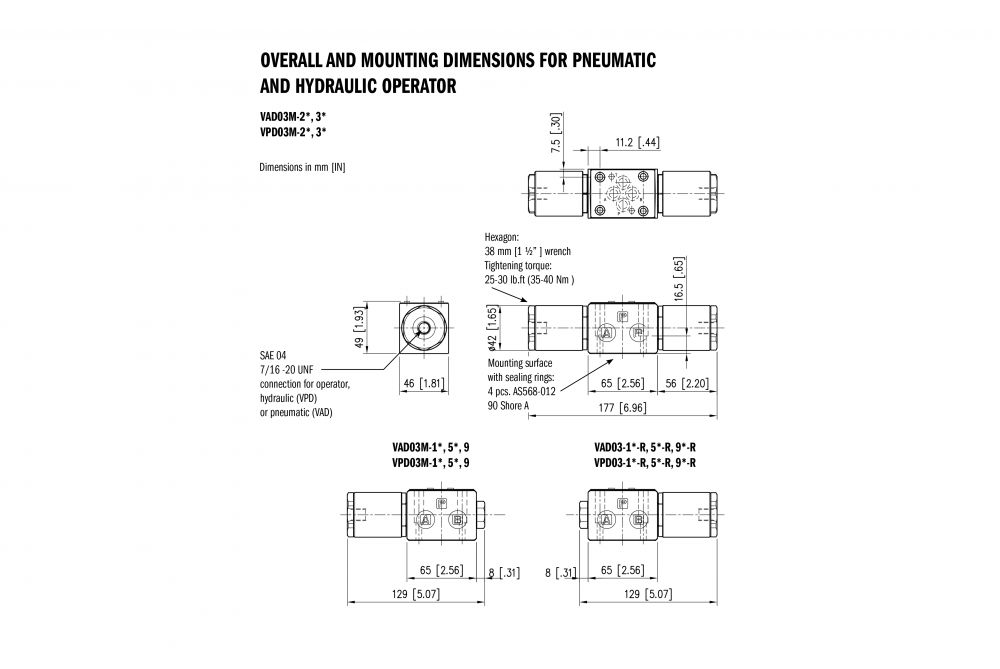

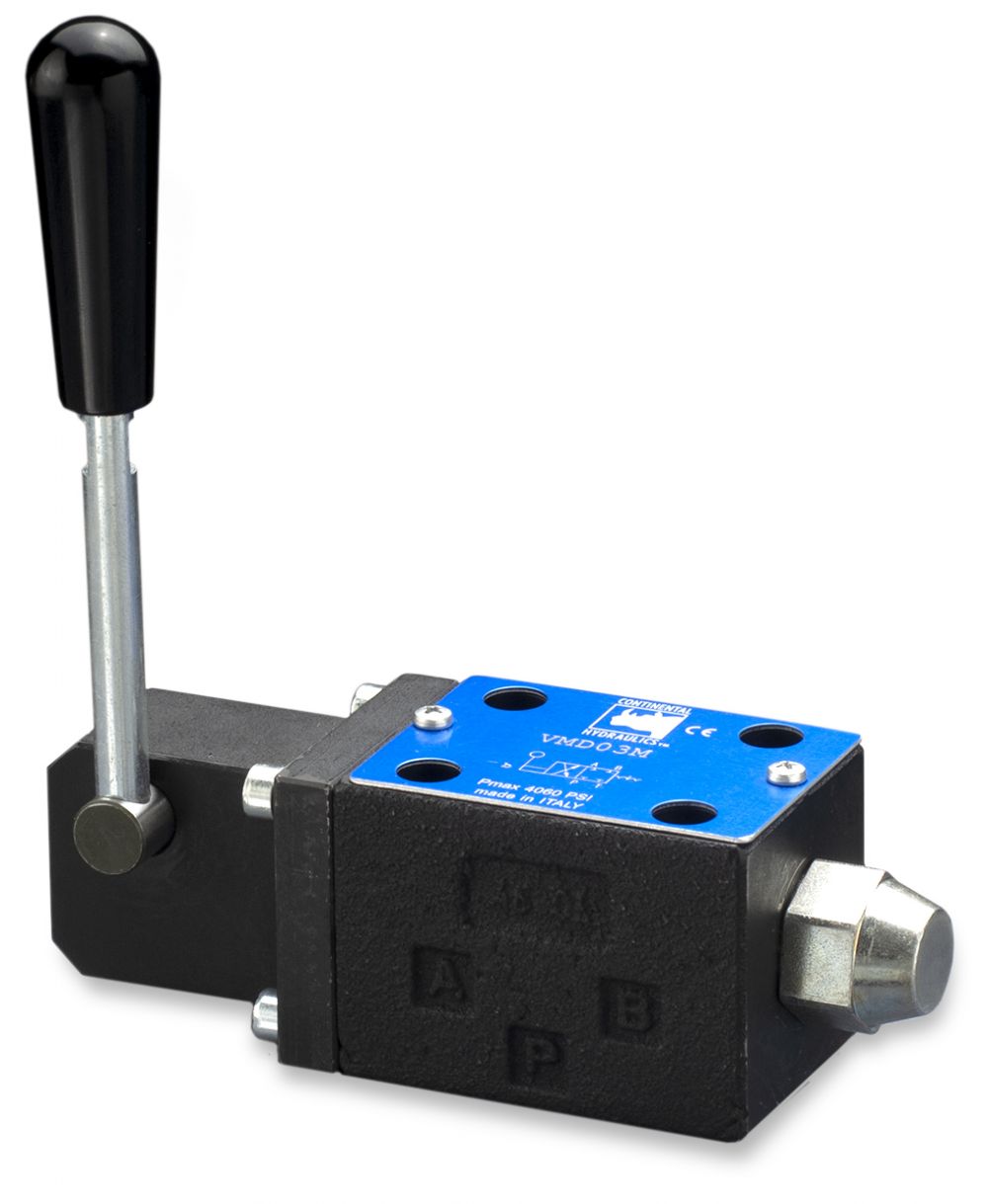

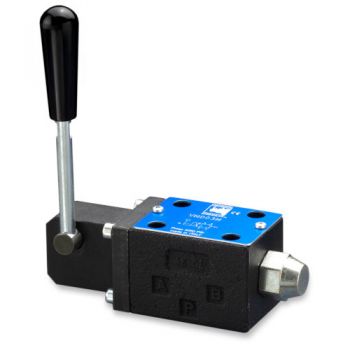

The Continental Hydraulics VAD03M – VPD03M – VMD03M directional control valves with air pilot actuation, hydraulic pilot actuation and lever actuation. These valves conform to NFPA D03 and ISO 4401 mounting standards. They are available in both 3 way and 4 way styles. All versions are available in 2 position spring offset, 2 position detent, 2 position spring centered and 3 position spring centered versions. The lever valve also is available in a 3 position detent model. A wide range of spools is available.
| Description | Units |
|---|---|
| Maximum Operating Pressure P - A - B Ports | 5000 psi / 350 bar |
| Maximum Operating Pressure T Port VA, VP | 360 psi / 25 bar |
| Maximum Operating Pressure T Port VM | 3000 psi / 210 bar |
| Maximum Pilot Pressure VA | 175 psi / 12 bar |
| Maximum Pilot Pressure VP | 3000 psi / 210 bar |
| Minimum Pilot Pressure VA | 60 psi / 4 bar |
| Minimum Pilot Pressure VP | 215 psi* / 15 bar* |
| Flow Rate | 20 gpm / 76 l/min |
| Mounting Surface | NFPA D03 ISO 4401-03-02-0-03 |
| Maximum Weight VA, VP Single OP. | 2.89 lbs / 1.3 kg |
| Maximum Weight VA, VP Dual Op. | 3.7 lbs / 1.7 kg |
| Maximum Weight VM - Lever | 4.6 lbs / 2.1 kg |
