Continental Hydraulics VSD03M EXA - Solenoid Actuated Directional Control Valve Explosion Proof

Continental Hydraulics are at the forefront of engineering hydraulic solutions for over 50 years-a testament to a long-standing reputation built upon your challenges and opportunities. A worldwide leader- a one-stop-shop for valves, pumps, power units and proportional products-all assembled in the USA.

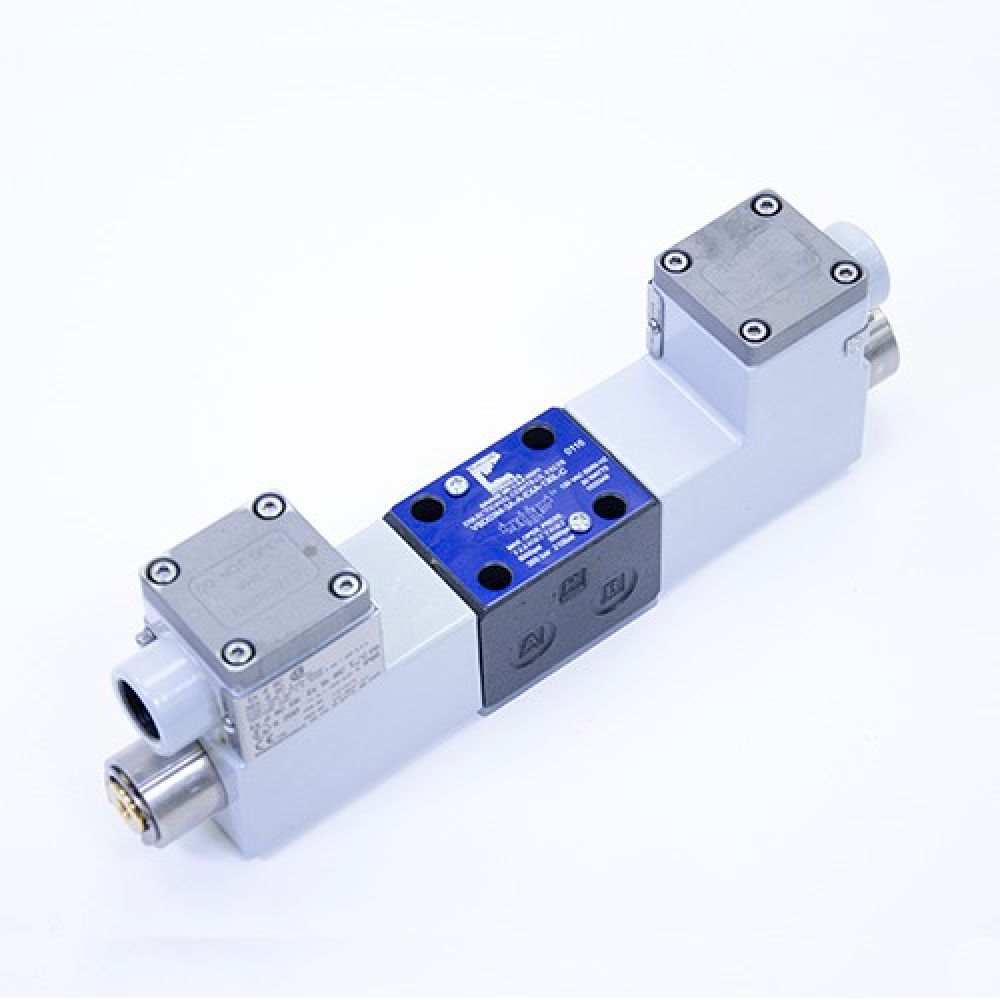

The Continental Hydraulics VSD 03M EXA, solenoid operated directional control valves are in compliance with ATEX 94/9/CE standards and are suitable for the use in potentially explosive atmospheres, that fall within either the ATEX II 2GD for gas or for dust classification. CERTIFICATE NUMBER: CEC II ATEX 076 Continental’s line of explosion proof, 4-way, directional control valves is available in 2 position spring offset, 2 position detent, 2 position spring centered and 3 position spring centered versions.

Four spools are available: block center, open center, float center and tandem center. The explosion proof solenoids are available in 12 VDC, 24VDC and 120VAC. The AC coil is equipped with a rectifier bridge. The DC coils have a built-in bi-directional diode for surge suppression.
