Continental Hydraulics are at the forefront of engineering hydraulic solutions for over 50 years-a testament to a long-standing reputation built upon your challenges and opportunities. A worldwide leader- a one-stop-shop for valves, pumps, power units and proportional products-all assembled in the USA.

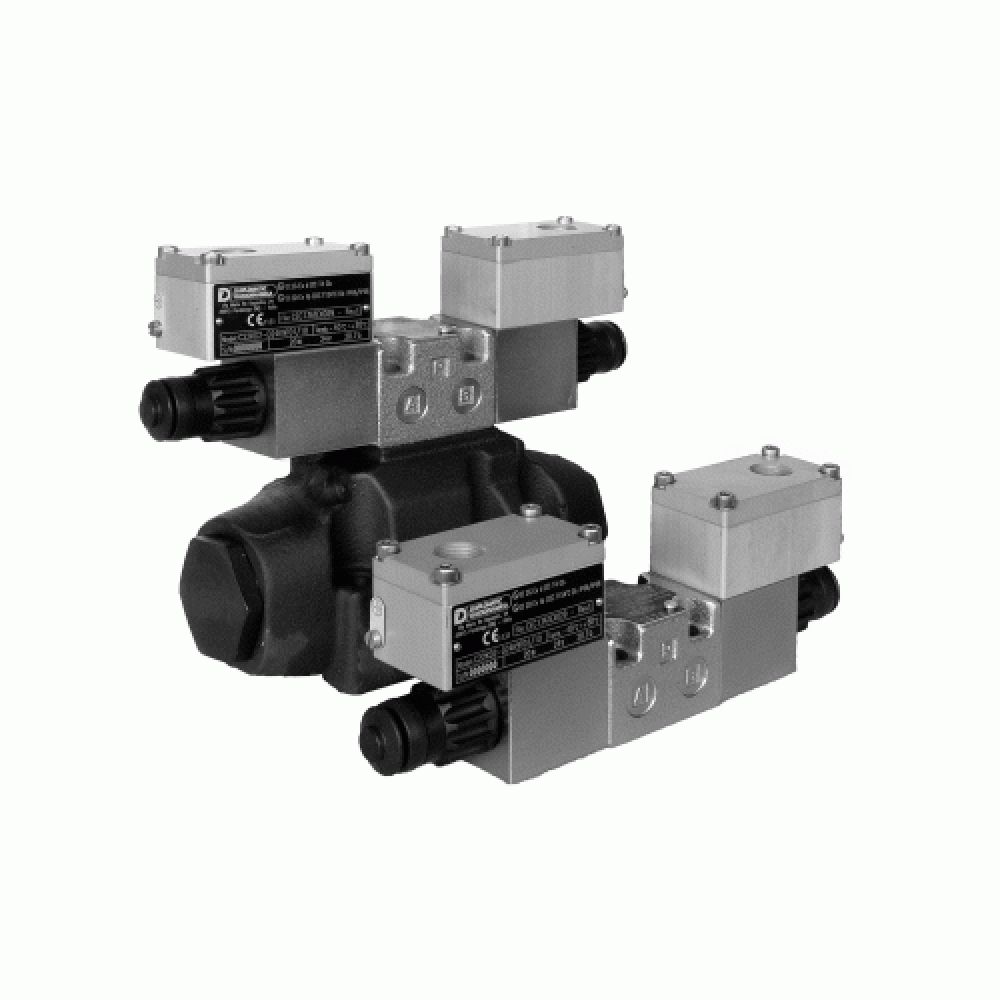

The Continental Hydraulics VSD*HL solenoid operated directional control valves are in compliance with ATEX 94/9/EC standards. They are suitable for use in potentially explosive atmospheres which fall within the ATEX II 2GD classification for gas and dust. The VSD03HL valve is supplied with a Zinc-Nickel surface treatment to ensure a salt spray resistance of up to 370 h. (test conducted per UNI EN ISO 9227 and evaluated per UNI EN ISO 10289).
The Zinc-Nickel surface treatment is available on the pilot operated valves upon request. A statement of conformity to the applicable standards is supplied with each valve. The label and electrical box on these valves have a concentration of magnesium lower than the critical value of 7.5% for the Hazardous Environments.
Model Number |
NFPA Mounting Standard |
ISO Mounting Standard |
|---|---|---|
| VSD03HL | NFPA D03 | ISO 4401-03-02-0-03 |
| VSD05HL | NFPA D05 | ISO 4401-05-04-0-05 |
| VSD05AHL & VSD05BHL | NFPA D05 alt A alt.B | ISO 4401-05-05-0-05 |
| VSD07HL | NFPA D07 | ISO 4401-07-07-0-05 |
| VSD08HL | NFPA D08 | ISO 4401-08-08-0-05 |
| VSD10HL | NFPA D10 | ISO 4401-10-09-0-05 |
| Description | VSD03HL | VSD05HL | VSD05AHL & VSD05BHL | VSD07HL | VSD08HL | VSD10HL |
|---|---|---|---|---|---|---|
| Maximum Operating Pressure P - A - B Ports | 5000 psi / 350 bar | 4600 psi / 320 bar | 4600 psi / 320 bar | 5000 psi / 350 bar | 5000 psi / 350 bar | 5000 psi / 350 bar |
| Maximum Operating Pressure T Port (Ext.Drain) | - | - | 3000 psi / 210 bar | 3000 psi / 210 bar | 3000 psi / 210 bar | 3000 psi / 210 bar |
| Maximum Operating Pressure T Port (Int.Drain) | 3000 psi / 210 bar | 3000 psi / 210 bar | 2000 psi / 140 bar | 2000 psi / 140 bar | 2000 psi / 140 bar | 2000 psi / 140 bar |
| Pilot Pressure Minimum | - | - | 72 - 145 psi / 5-10 bar | 72 - 175 psi / 5-12 bar | 102-204 psi / 7-14 bar | 87 - 175 psi / 6-12 bar |
| Pilot Pressure Maximum | - | - | 3000 psi / 210 bar | 3000 psi / 210 bar | 3000 psi / 210 bar | 3000 psi /210 bar |
| Max Flow Rate | 20 gpm / 76 l/min | 33 gpm / 125 l/min | 40 gpm / 150 l/min | 80 gpm / 300 l/min | 160 gpm / 600 l/min | 290 gpm / 1110 lpm |
| Max Weight | 6.2lbs / 2.8 kg | 8.4 lbs / 3.8kg | 17.2 lbs / 7.8 kg | 21.2 lbs / 9.6 kg | 36.5 lbs / 16.5 kg | 1116.8 lbs / 53 kg |
