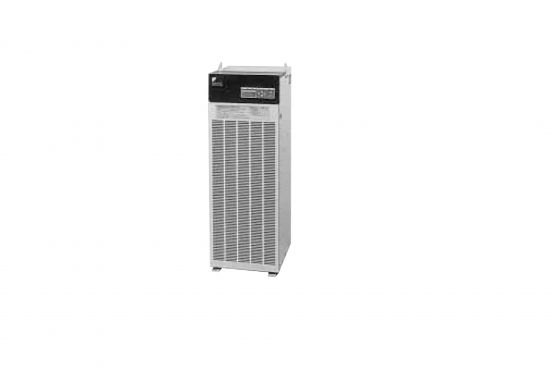

Daikin AKZ**6 - Oil Cooling Unit

Daikin

View all specifications ~ scroll down to find the part you need ~

Market leaders in environmentally responsible heat pumps, ventilation and air conditioning systems for domestic, commercial and industrial applications.

1. High accuracy oil temperature control

Realized high level oil temperature control by 0.1°C, because optimum oil temperature control software (our own development) is applied.

Digital setting

The adoption of liquid crystal display digital controller makes it possible to set temperature so delicate as 0.1°C, and the handling characteristics increases as temperature setting accuracy increases.

Mounted a machine interface (under patent pending)

Since equipped as a standard accessory with a communication function (machine interface) to be able to set temperature through a talk to a machine tool, the alteration of many kinds of operation modes through signals from a machine is possible.

New design in a slim style

The new design with a compactness and a slim style makes it possible to realize the installation area reduction.

Equipped with operation monitor function.

Adopting a liquid crystal display panel easy to see, the operation state always can be monitored.

The Daikin AKZ refrigeration coolers are used extensively in many machine tool centers from the following manufacturers: Doosan, Makino, Citizen, Hyundai, Mazak and Traub Index.

The following special OEM versions are also available directly from Zeus Hydratech Ltd.

AKZ328-CX-D220B	AKZ328-T-N01	AKZ328-C-D193A	AKZ568-CT-D182A	AKZ438-BC-M07	AKZ438-C-D193A
AKZ328-CT-D221	AKZ328-C-D243A	AKZ438-C-D284	AKZ568-D142	AKZ328-BC-M07	AKZ328-CX-D302B
AKZ328-CTX-D181B	AKZ328-C-D220	AKZ438-C-D220A	AKZ438-CX-D193E	AKZ328-T-D314	AKZ328-CX-0210B
AKZ328-C-D193A	AKZ438-BCX-D220D-1	AKZ328-C-D220A	AKZ328-D04A	AKZ328-C-D210

Please note: The 6 series chillers are no longer manufactured and spares are no longer avaiable.

The current model that replaces it will be the Daikin 9 series. Please click here to view the full range. To insure you select the correct model to replace your older unit, we suggest calling us on +44(0)1172 130042 or Email with your chiller part number and we will be happy to confirm the correct specification along with price and and avaiability.

Downloads & Datasheets

Description	AKZ106	AKZ206	AKZ306
Maximum Cooling Capacity	3.8 / 4.2 kW	5.9 / 6.2 kW	8.7 / 9.5 kW
Power Supply Main Circuit (50/60 Hz)	Three Phase 200 / 200 . 220V	Three Phase 200 / 200 . 220V	Three Phase 200 / 200 . 220V
Power Supply Control Circuit (50/60Hz)	Single Phase 200 / 200 . 220V	Single Phase 200 / 200 . 220V	Single Phase 200 / 200 . 220V
Power Supply Capacity (200/220V)	2.3 / 2.6 kVA	4.7 / 5.0 kVA	9.7 / 10.3 kVA
Oil pump displacement volume (50 / 60 Hz)	24 / 29 L/min	34.5 / 41.5 L/min	34.5 / 41.5 L/min
Compressor (hermetic rotary type)	0.75 kW, 2P	1.5 kW, 2P	2.2 kW, 2P
Evaporator	Shell and Coil Type	Shell and Coil Type	Shell and Coil Type
Condenser	Cross-fin coil type	Cross-fin coil type	Cross-fin coil type
Fan	Propeller fan	Propeller fan	Propeller fan
Room Temperature Application Range	5 - 45 °C	5 - 45 °C	5 - 45 °C
Tank Oil Temperature Application Range	5 - 50 °C	5 - 50 °C	5 - 50 °C
Oil Viscosity	4 - 200 mm²/s	4 - 200 mm²/s	4 - 200 mm²/s
External Dimensions (H x W x D)	1020 × 360 × 450mm	1220 × 430 × 500 mm	1200 × 560 × 620 mm
Weight	70 kg	105 kg	150 kg
