Daikin EHU ECORICH Hybrid - Hydraulic Power Unit with 100 Litre tank, 400v 3ph

Daikin
Contact us for current availability
View all specifications

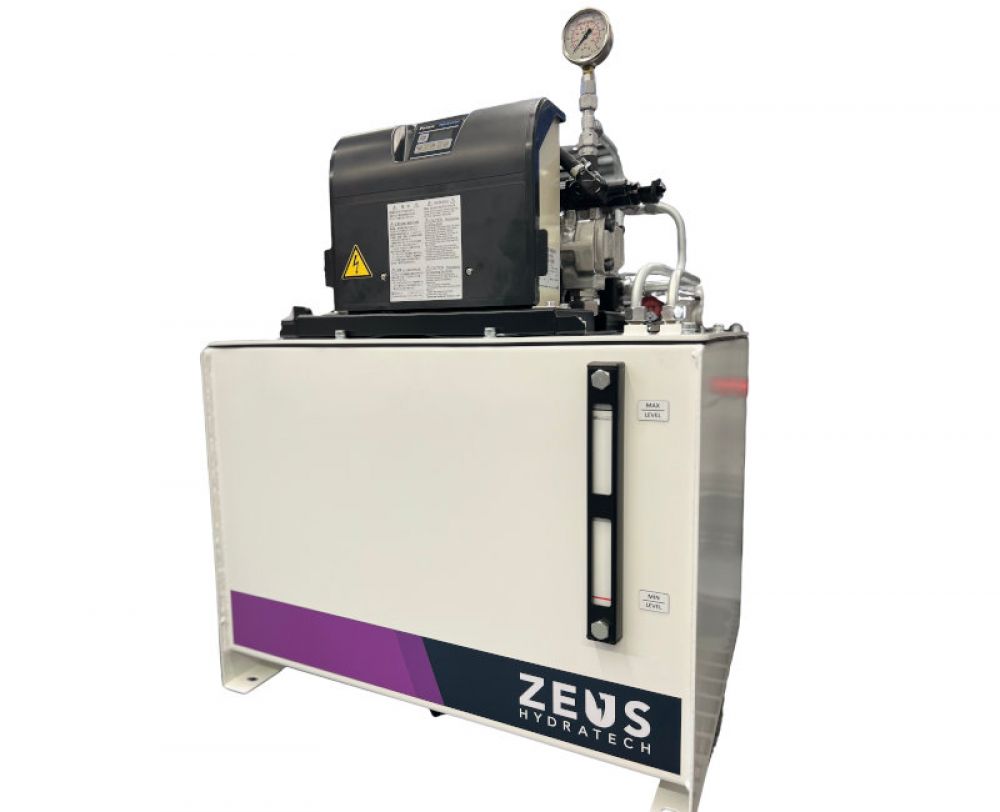

Frame mounted, 3 phase, 400v version of the EHU - Mounted directly to a larger 100 litre oil reservoir, a custom solution offered by Zeus Hydratech.

This version is supplied with:

  • 1x Mild steel 100L reservoir, powder coated inside and out
  • 1x Full size STAUFF oil level gauge (w/ optional low level switch)
  • 1x Laser-cut steel reservoir lid (To accept EHU module, surface mounted return filter & CETOP 03 subplate (up to 7 stations))
  • 1x Neoprene laser cut reservoir lid gasket
  • 1x Lid mounted return filter w/ visual blocking indicator
  • 1x Visual pressure gauge
  • Optional CETOP 03 subplate (Up to 7 stations available upon request)
  • Hard piped pressure & return lines with metric fittings

Daikin are now supplying a range of ECORICH Hybrid Units using the industry standard power supply of 400vdc, 3ph making them ideal for easy integration with your industrial application.

There are 3 base models available:

  • EHU3007: Pressure up to 70 bar, Flow rate up to 28.5 l/min
  • EHU2008: Pressure up to 80 bar, Flow rate up to 20 l/min
  • EHU1414: Pressure up to 135 bar, Flow rate up to 13.5 l/min

The above models are all available with the following 3 configurations from the manufacturer:

However, Zeus Hydratech is proud to offer this outstanding energy saving power pack with our own bespoke designed and custom built solution. Utilising a laser-cut tank lid, we are able to mount the Daikin EHU units to a larger 100 litre tank. We can also offer this service for the 200v 3ph Daikin ECORICH units.

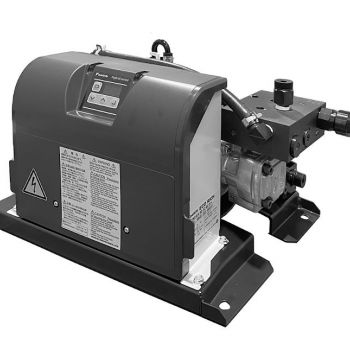

The innovative ECORICH hybrid units represent the culmination of Daikin Industries LTD's design and manufacturing expertise. These units seamlessly integrate hydraulic technology with an interior permanent magnet synchronous motor, resulting in a compact yet powerful unit that excels in both torque and efficiency, all while effectively mitigating heat and noise production. This remarkable combination substantially reduces energy consumption.

The motor-pump's exceptional efficiency ensures minimal oil heating, which brings several advantages to the application in which the ECORICH is installed. This includes prolonged lifespan for oil and heat-sensitive components, as well as reduced heat dissipation into the surrounding environment.


Product Features

  • Energy Saving - Typically 55% less energy used versus a conventional fixed speed power pack
  • High Speed Response
  • Compact Design and Resource Saving
  • Autonomous Energy-Saving Pressure-Flow Rate Control
  • Easy Installation and Easy Operation

Utilising a built in control panel, the operator is able to easily set max flow and pressure requirements - furthermore, the panel will also accept digital I/O input commands from an existing PLC. Developed for industrial applications, the following units are designed for a 3 phase, 380 ~ 460 volt AC power supply.

For price and delivery on any of the options presented or to discuss your needs for a bespoke hydraulic power pack solution, please contact our sales team by email, sales@zeushydratech.com or Tel: +44(0)1172 130042


  EHU3007-40-YC EHU2008-40-YC EHU1414-40-YC
Identification Code -QU -Q045 -QU -Q045 -QU -Q045
Maximum operating pressure (bar) 70 135
Operating range (bar) 15~70 15~80 15~135
Operating flow range (Litres/min) 3.5~28.5 2.5~20 1.8~13.5
Tank capacity - 45 - 45 - 45
Supply voltage (V) 3 Phase, AC 380 ~ 460 Volts, 50/60Hz ± 10%
Nominal motor power (KW) 1.5
Rated Current (A) 7
Return filter (µ) - 25 - 25 - 25
Input signal 3 channels, photo coupler insulation, DC 24 V (maximum of DC 27 V), 5 mA / channel
Digital output signal, external 1 channel, photo coupler insulation, open collector output, DC 24 V, 50 mA maximum / channel
Contact output signal, external: 1 channel, relay output, contact capacity: DC 30 V, 1 A (resistance load), 1 common contact
Fluid temperature range in tank: 0 to +60 (recommended +15 to +50)
Noise level range: (Distance 1 metre) 58 ~ 70 dB

Weight: (KG)

EHU*-QU

EHU*-Q045

EHU*-Q045M3



22

-

-



-

58

69



22

-

-



-

58

69



24

-

-



-

60

71



Special OEM versions

The Daikin EHU hydraulic power packs are used extensively in many machine tool centers from the following manufacturers: DoosanMakinoCitizenHyundaiMazak and Traub Index.

The following special OEM versions are also available directly from Zeus Hydratech Ltd.

EHU30-M07-AE-30-V-169A

EHU30-M07-AE-30-V-088

EHU30-M07-AE-30-V-024

EHU25-M07-AE-30-V344

EHU25-M07-AE-30-V-118

EHU25-L07-A-30-008A

EHU25-L04-A-30-127E

EHU25-L04-A-30-127D

EHU25-L04-A-30-032

EHU25-L04-A-30-019D

EHU25-L04-A-30-127C

EHU25-M07-AE-30-V-300
