Daikin EHU ECORICH Hybrid - Hydraulic Power Unit with frame (No Tank), 400v 3ph

Daikin
In stock - order today
View all specifications

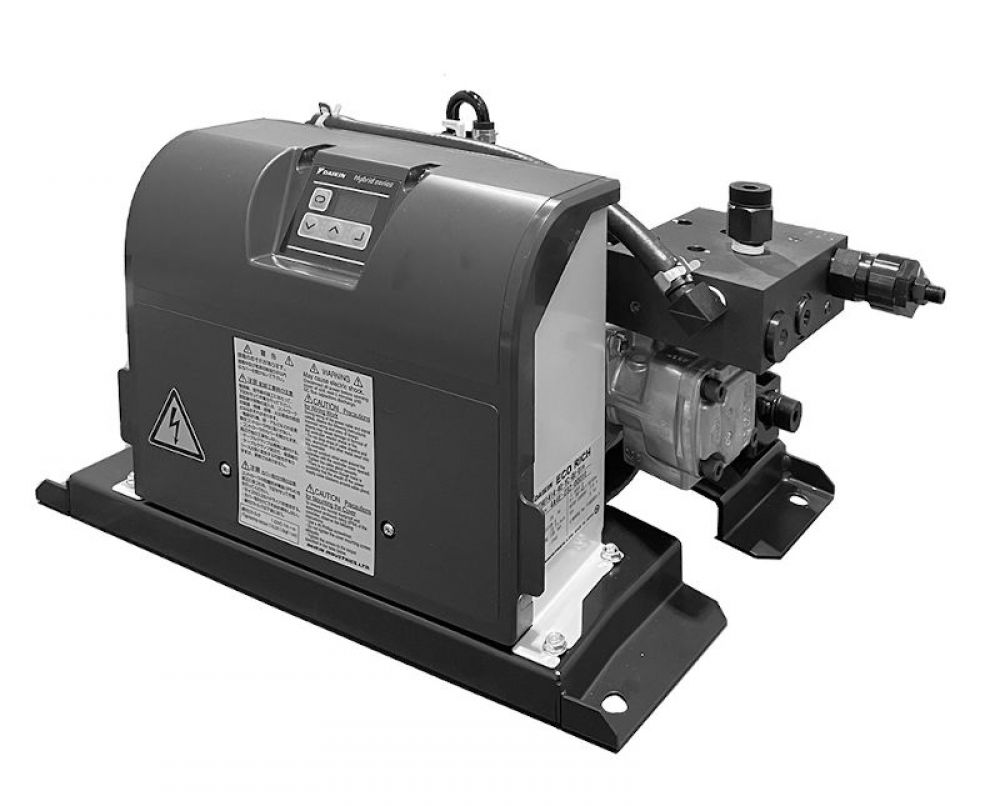

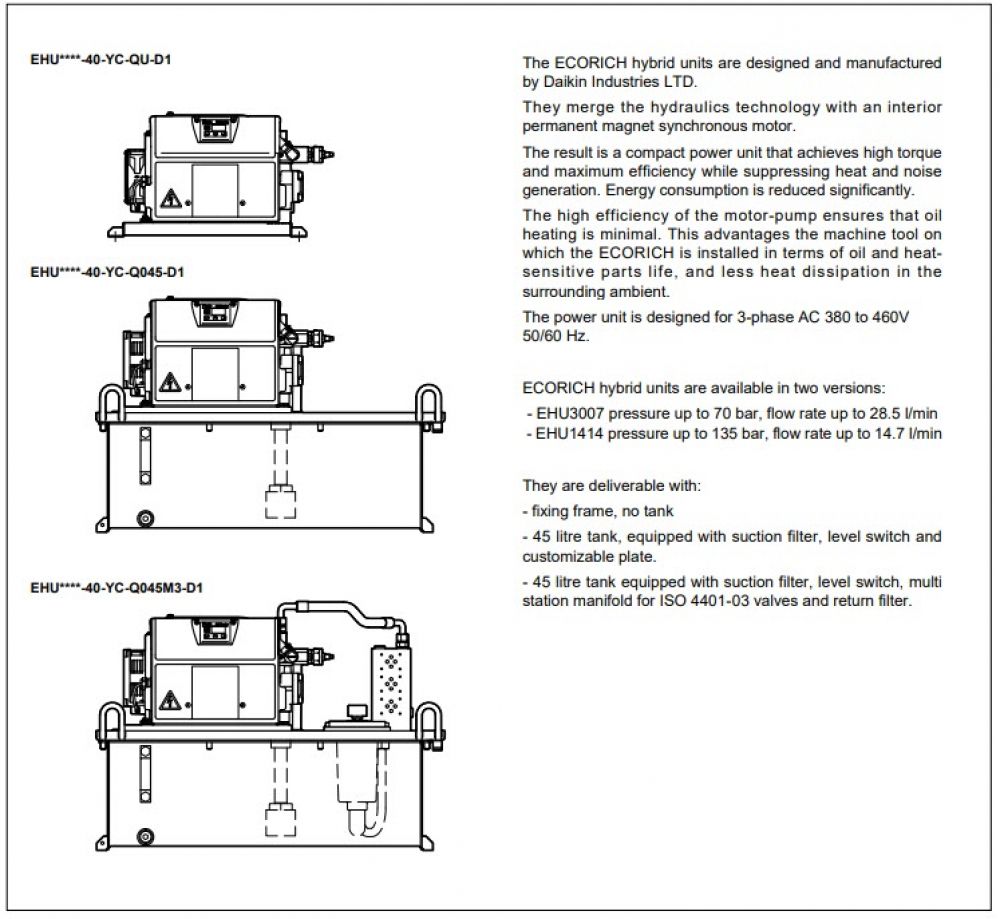

Frame mounted, 3 phase, 400v version of the EHU - Mounts directly to a larger oil reservoir to permit installation of a vertical solenoid valve subplate and return filter arrangement.

There are 3 base models available:

  • EHU3007: Pressure up to 70 bar, Flow rate up to 28.5 l/min
  • EHU2008: Pressure up to 80 bar, Flow rate up to 20 l/min
  • EHU1414: Pressure up to 135 bar, Flow rate up to 13.5 l/min

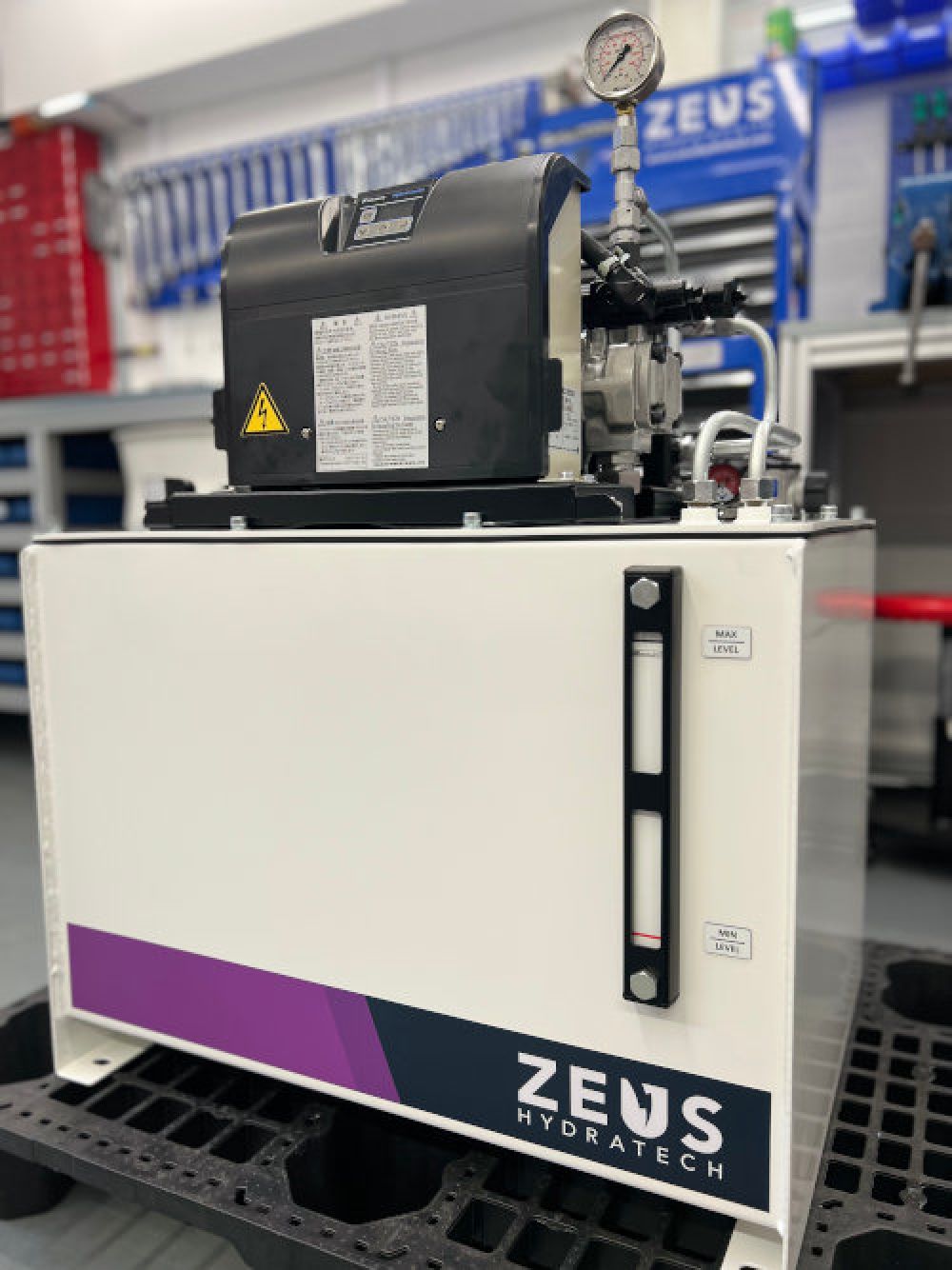

Zeus Hydratech offer either a reservoir lid mount kit to use with your existing OMT tank (CF55, CF100), or a complete reservoir kit, which includes a 58 litre capacity, powder coated steel reservoir, laser cut lid ready to accept the ECORICH frame, return filter and subplate. As part of the complete kit, we also include the following components:

  • 1 x Multi station CETOP 03 valve manifold (1~5 stations available)
  • 1 x Pressure gauge and isolation tap
  • 1 x Return filter
  • 1 x Suction filter
  • 1 x Oil level gauge
  • 1 x Steel pipe kit + fittings for pump inlet & return line connections

The innovative ECORICH hybrid units represent the culmination of Daikin Industries LTD's design and manufacturing expertise. These units seamlessly integrate hydraulic technology with an interior permanent magnet synchronous motor, resulting in a compact yet powerful unit that excels in both torque and efficiency, all while effectively mitigating heat and noise production. This remarkable combination substantially reduces energy consumption.

The motor-pump's exceptional efficiency ensures minimal oil heating, which brings several advantages to the application in which the ECORICH is installed. This includes prolonged lifespan for oil and heat-sensitive components, as well as reduced heat dissipation into the surrounding environment.


Product Features

  • Energy Saving - Typically 55% less energy used versus a conventional fixed speed power pack
  • High Speed Response
  • Compact Design and Resource Saving
  • Autonomous Energy-Saving Pressure-Flow Rate Control
  • Easy Installation and Easy Operation

Utilising a built in control panel, the operator is able to easily set max flow and pressure requirements - furthermore, the panel will also accept digital I/O input commands from an existing PLC. Developed for industrial applications, the following units are designed for a 3 phase, 380 ~ 460 volt AC power supply.

For price and delivery on either option, please contact our sales team by email, sales@zeushydratech.com or Tel: +44(0)1172 130042


  EHU3007-QU EHU3007-Q58 (With tank) EHU1414-QU EHU1414-Q58 (With tank)
Max operating pressure: (Bar) 70 135
Operating range: (Bar)  15 ~ 70 15 ~ 135
Operating flow range: (Litres/min) 3.5 ~ 28.5 1.8 ~ 14.7
Tank capacity: (Litres) - 58 - 58
Supply voltage: (V) 3 Phase, AC 380 ~ 460 Volts, 50/60Hz ± 10%
Nominal motor power: (KW) 1.5
Rated current: (A)  7
Return Filter: (µ) - 25 - 25
Input signal:  3 channels, photo coupler insulation, DC 24 V (maximum of DC 27 V), 5 mA / channel
Digital output signal, external: 1 channel, photo coupler insulation, open collector output, DC 24 V, 50 mA maximum / channel
Contact output signal, external: 1 channel, relay output, contact capacity: DC 30 V, 1 A (resistance load), 1 common contact
Fluid temperature range in tank: 0 ~ +60°C (Recommended +15°c ~ +50°c )
Noice level range: (Distance 1 metre) 58 ~ 76 dB
Weight: (KG) 22   24



Special OEM versions

The Daikin EHU hydraulic power packs are used extensively in many machine tool centers from the following manufacturers: DoosanMakinoCitizenHyundaiMazak and Traub Index.

The following special OEM versions are also available directly from Zeus Hydratech Ltd.

EHU30-M07-AE-30-V-169A

EHU30-M07-AE-30-V-088

EHU30-M07-AE-30-V-024

EHU25-M07-AE-30-V344

EHU25-M07-AE-30-V-118

EHU25-L07-A-30-008A

EHU25-L04-A-30-127E

EHU25-L04-A-30-127D

EHU25-L04-A-30-032

EHU25-L04-A-30-019D

EHU25-L04-A-30-127C

EHU25-M07-AE-30-V-300
