Daikin HDIN T10, F10, F12, F16, F24 - Inline Check Valve image

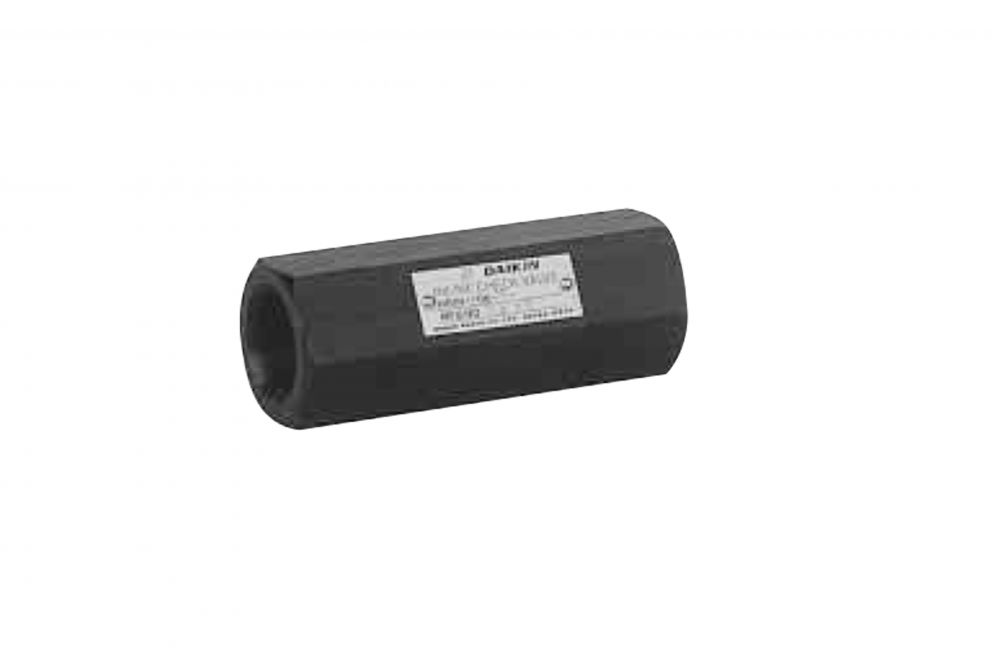

Daikin HDIN T10, F10, F12, F16, F24 - Inline Check Valve

Daikin

View all specifications ~ scroll down to find the part you need ~

Market leaders in environmentally responsible heat pumps, ventilation and air conditioning systems for domestic, commercial and industrial applications.

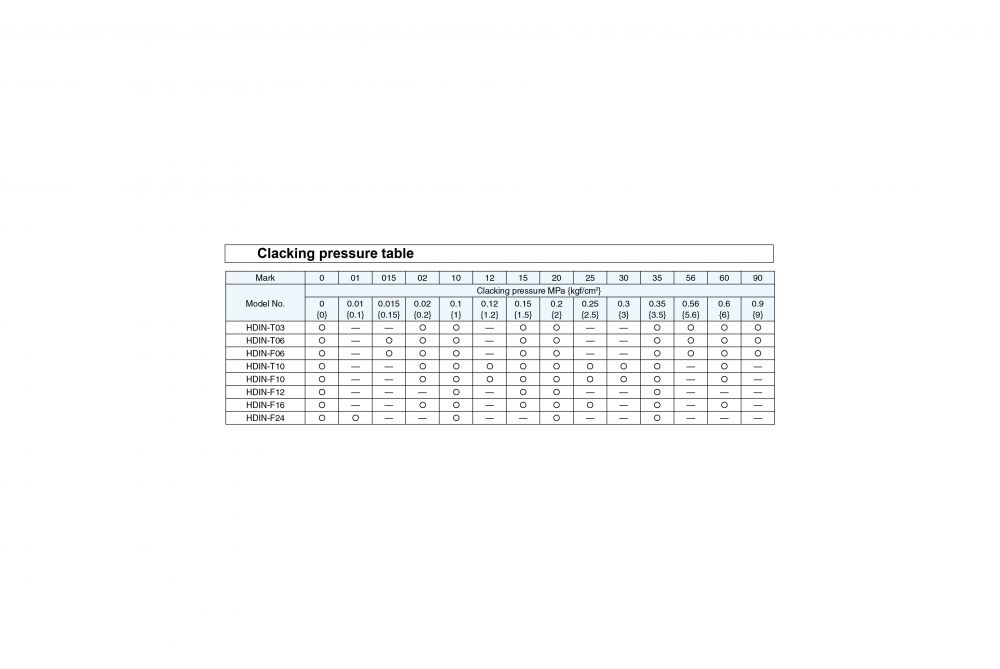

When the Daikin HDIN Inline Check Valve is built in the line, if its reaches a cracking pressure, it lets the check valve push open and allows the oil flow in one direction, preventing a reverse stream.

Downloads & Datasheets

Daikin - HDIN - Inline Check Valve - Datasheet

Description	HDIN-T10-**	HDIN-F10-**	HDIN-F12-**	HDIN-F16-**	HDIN-F24-**
Nom Dia	1¼	1¼	1½	2	3
Max Operating Pressure	21 MPa {210 kgf/cm²}	21 MPa {210 kgf/cm²}	21 MPa {210 kgf/cm²}	21 MPa {210 kgf/cm²}	21 MPa {210 kgf/cm²}
Max Flow Rate	190 L/min	190 L/min	240 L/min	370 L/min	1060 L/min
Weight	2.7 kg	6.9 kg	13 kg	16 kg	43 kg
