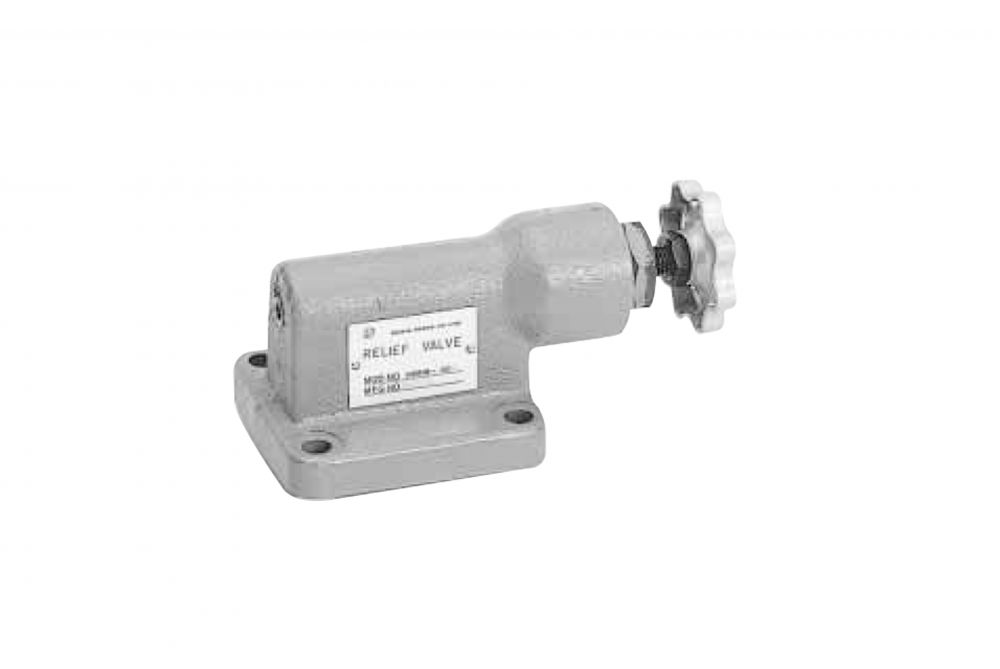

Daikin HDRIR - Direct Operated Relief Valve

Daikin

View all specifications ~ scroll down to find the part you need ~

As the Daikin HDRIR - Direct Operated Relief Valve override pressure is small, this valve has an almost equivalent performance to a pilot operated type. The vibration proof structure makes it possible to prevent chattering even in high pressure.

Downloads & Datasheets

Daikin - HDIR - Direct Operated Relief Valve - Datasheet

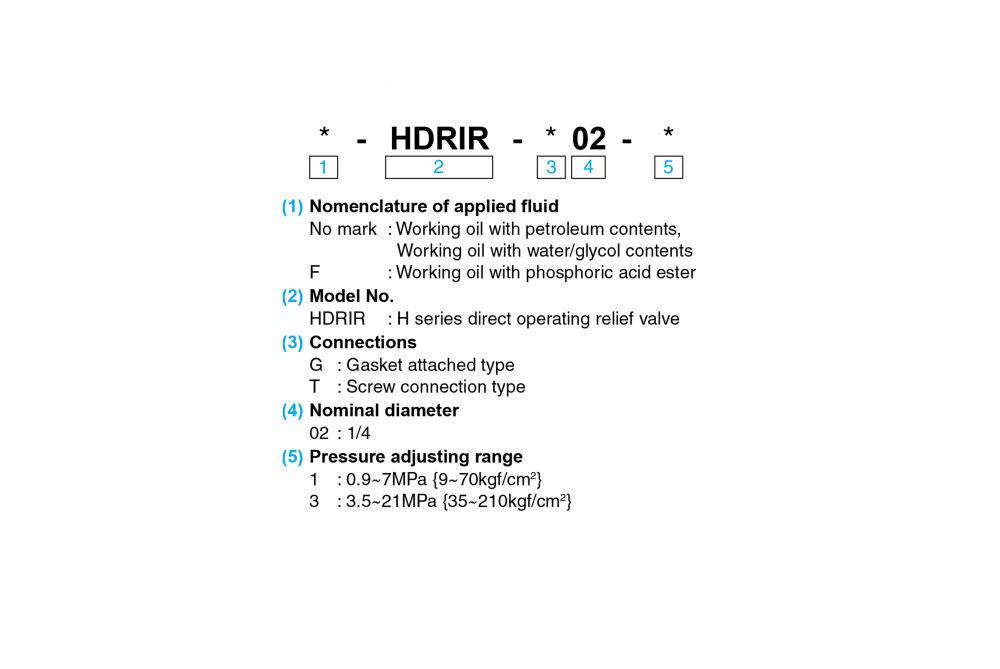

Description	HDRIR-G02-1	HDRIR-G02-3	HDRIR-T02-1	HDRIR-T02-3
Nom. Dia	1/4	1/4	1/4	1/4
Pressure Adjusting Range	0.9 ~ 7 MPa (9 ~ 70 kgf/cm²)	3.5 ~ 21 MPa (35 ~ 210 kgf/cm²)	0.9 ~ 7 MPa (9 ~ 70 kgf/cm²)	3.5 ~ 21 MPa (35 ~ 210 kgf/cm²)
Max Flow Rate	12 L/min	12 L/min	12 L/min	12 L/min
Weight	2.6 kg	2.6 kg	1.8 kg	1.8 kg
