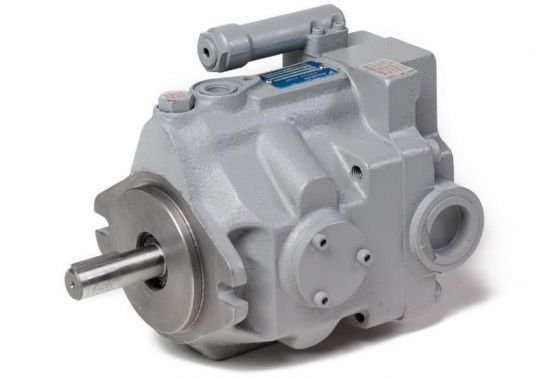

Daikin J-V70 Series Piston pumps

Daikin was the first in the industry to introduce inverter-driven hydraulic equipment to help drive efficiency, mainly utilised in the EHU and the SUT power pack units and have now developed a range of piston pumps that are recognised for their low noise, high efficiency, and high reliability. The J-V series of piston pumps has been specifically designed for use in industrial applications and are suitable for open loop circuits with either adjustable or regulated delivery of flow. The pumps are extremely reliable in operation due to being responsive and very stable which makes them ideal to increase the reliability of the main machine it is installed upon.

The J-V series is the European version of the Daikin V series, functionally these pumps are exactly the same but there are some minor dimensional differences between the two series to be aware of, details of which can be seen in the downloads section below.

The J-V70 size in the series is the largest and has a displacement of up to 70cm³/rev and pressure adjustment options that range from 8 bar up to 250 bar.  There are five smaller sizes also available from the J-V series: the J-V8 (8cm³/rev), J-V15 (15cm³/rev), J-V23 (23cm³/rev), J-V38 (38cm³/rev) and J-V50 (50cm³/rev).

Order your pump today

As authorised Daikin distributors in the UK, based near Bristol, Zeus Hydratech Limited are well placed to support you with any enquiries for the Daikin J-V70 series of piston pumps. Contact us today via email or phone (+44 (0) 1172130042) and our team will be happy to hear from you.

Notable Characteristics:

•  Low External Noise

•  Easy to service

•  Low oil heat generation

•  Fast response times & High repetition accuracy

•  Comprehensive selection of control options (see below)

Control Options:

• A - Pressure Compensator Control Mechanical adjustment (Only option available for the J-V8)

• ARC - Remote Pressure Compensator by remote control pilot relief valve

• D - Dual Pressure compensator Control, electrically switched

• SA - Combine flow and Pressure Compensator Control

• CH - Combined control pressure and displacement with system pressure

• CJ - Combined control pressure and displacement with solenoid valve
