Daikin J-V8 - J-V23 Series - Piston Pump image

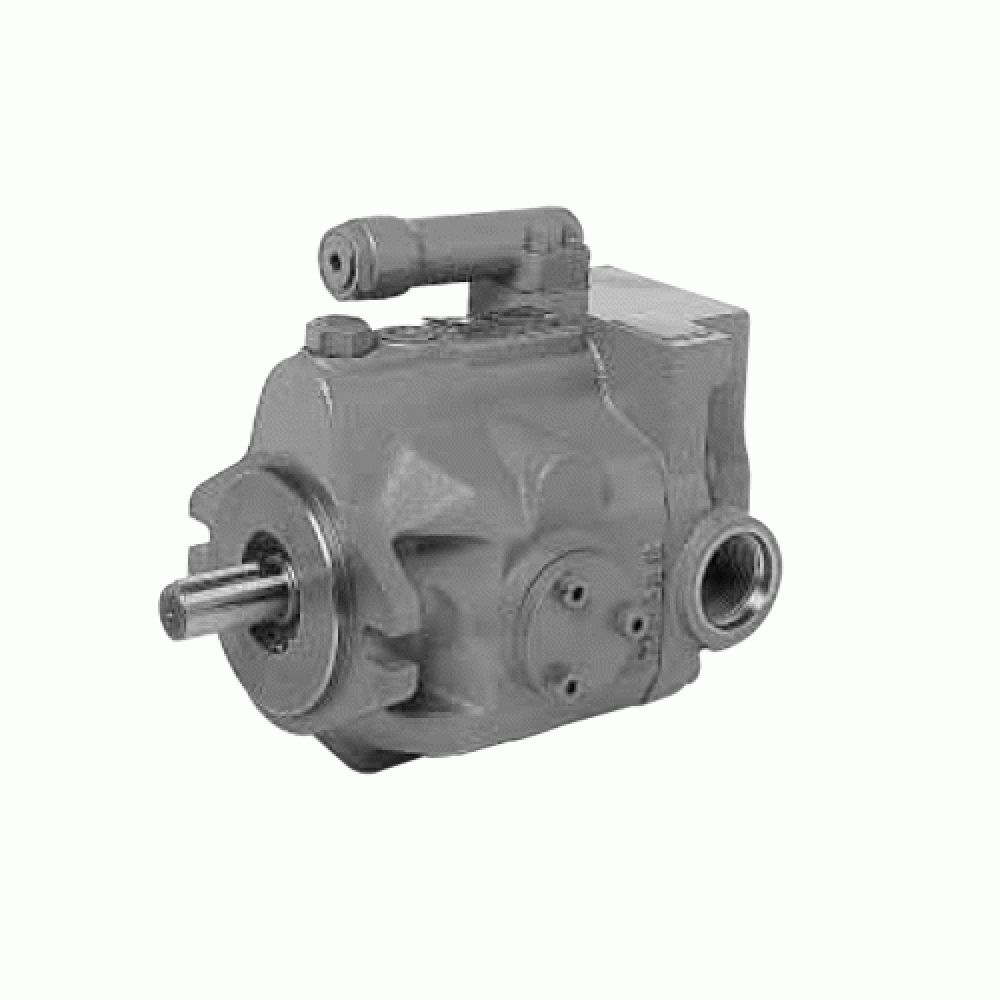

Daikin J-V8 - J-V23 Series - Piston Pump

Name: Zeus Hydratech Ltd
Telephone: +441172130042
Price range: £ - ££££

Daikin

View all specifications ~ scroll down to find the part you need ~

Market leaders in environmentally responsible heat pumps, ventilation and air conditioning systems for domestic, commercial and industrial applications.

Low noise
Realized low noise operation in overall pressure area on each series.

High efficiency
Oil temperature rise can be reduced due to the less power-loss. Accordingly, it is possible to design the tank in small size.

High reliability
High response, high stability, and long life make it possible to increase the reliability of the main machine

You can find individual pages for each size pump below:

Downloads & Datasheets

Description	J-V8	J-V15	J-V15 (Type Y)	J-V23
Theoretical Discharge	8.0 cm³/rev	14.8 cm³/rev	14.8 cm³/rev	23 cm³/rev
Maximum Operating Pressure	7 MPa {70 bar}	21 MPa {210 bar}	7 MPa {70 bar}	25 MPa {250 bar}
Permissible Rotational Speed	500 to 1800 min	500 to 1800 min	500 to 1800 min	500 to 1800 min
Discharge Rate Adjustment Range 1800 min (Axial Port)	2 to 14.4 L/min	4.5 to 26.6 L/min	4.5 to 26.6 L/min	12 to 41.4 L/min
Discharge Rate Adjustment Range 1800 min (Side Port)	2 to 14.4 L/min	7.5 to 26.6 L/min	4.5 to 26.6 L/min	12 to 41.4 L/min
Weight (Axial Port)	-	12.8 kg	13.5 kg	18.4 kg
Weight (Side Port)	8.9 kg	14.5 kg	13.5 kg	21.5 kg
