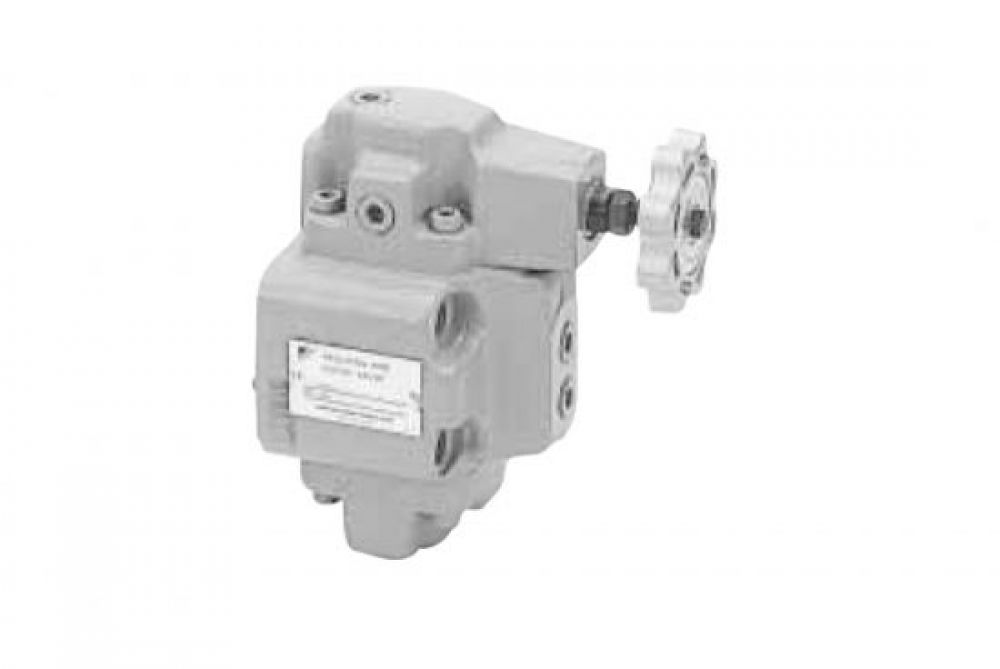

The Daikin JGB Reducing and Check valve is used when the pressure in a partial oil circuit is set lower than a main circuit. Even if the primary main circuit varies, the secondary pressure can be kept constant. If a remote control relief valve is connected to a vent port, the branch circuit pressure can be controlled.
| Description | JGBC-F06-1-20 | JGBC-F06-3-20 | JGBC-F10-1-20 | JGBC-F10-3-20 | JGBC-F16-1-21 | JGBC-F16-3-21 |
|---|---|---|---|---|---|---|
| Nom Diameter | 3/4 | 3/4 | 1¼ | 1¼ | 2 | 2 |
| Max Operating Pressure | 21 MPa {210 kgf/cm²} | 21 MPa {210 kgf/cm²} | 21 MPa {210 kgf/cm²} | 21 MPa {210 kgf/cm²} | 21 MPa {210 kgf/cm²} | 21 MPa {210 kgf/cm²} |
| Pressure Adjusting Range | 0.8 ~ 7 MPa (8 ~ 70 kgf/cm²) | 3.5 ~ 21 MPa (35 ~ 210 kgf/cm²) | 0.8 ~ 7 MPa (8 ~ 70 kgf/cm²) | 3.5 ~ 21 MPa (35 ~ 210 kgf/cm²) | 0.8 ~ 7 MPa (8 ~ 70 kgf/cm²) | 3.5 ~ 21 MPa (35 ~ 210 kgf/cm²) |
| Max Flow Rate | 120 L/min | 120 L/min | 280 L/min | 280 L/min | 500 L/min | 500 L/min |
| Drain Rate | 0.9 ~ 1.1 L/min | 0.9 ~ 1.1 L/min | 1.2 ~ 1.5 L/min | 1.2 ~ 1.5 L/min | 2 ~ 2.4 L/min | 2 ~ 2.4 L/min |
