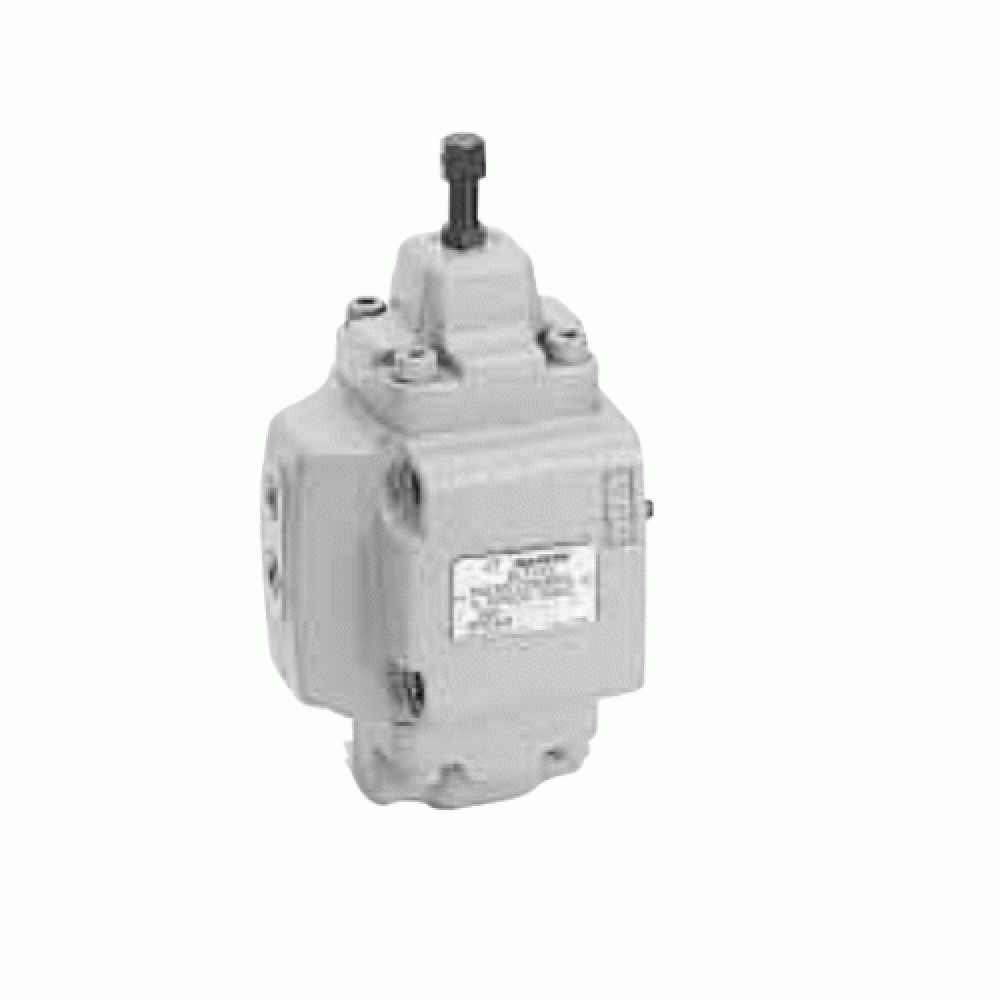

The Daikin JQ Pressure Control Valve is a direct acting valve which can be used for a sequence valve, an unload valve, a counter balance valve and a relief valve in a combination of either internal or external pilot and drain.

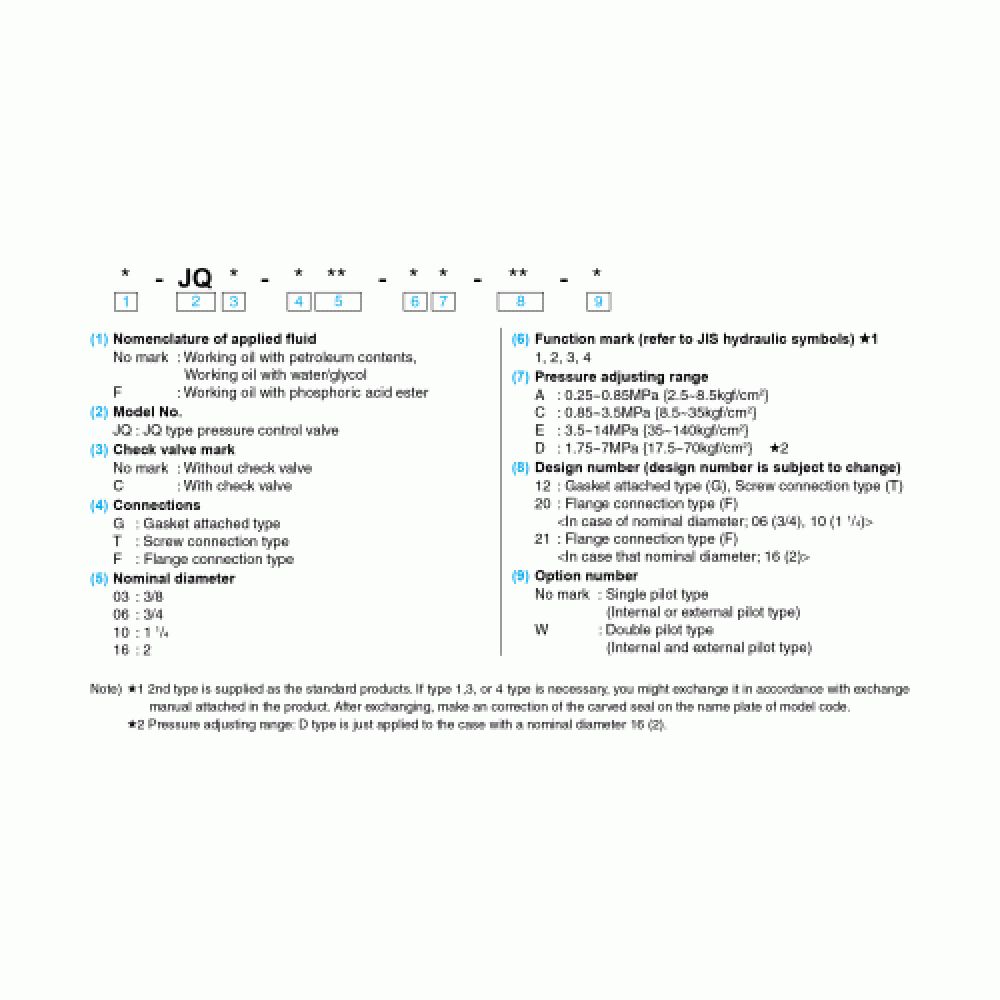

| Description | JQ(C)-G03-*A-12 | JQ(C)-G03-*C-12-(W) | JQ(C)-G03-*E-12-(W) |
|---|---|---|---|
| Nom Diameter | 3/8 | 3/8 | 3/8 |
| Max Operating Pressure | 21 MPa (210 kgf/cm²) | 21 MPa (210 kgf/cm²) | 21 MPa (210 kgf/cm²) |
| Pressure Adjusting Range | 0.25 ~ 0.85 MPa (2.5 ~ 8.5 kgf/cm²) | 0.85 ~ 3.5 MPa (8.5 ~ 35 kgf/cm²) | 3.5 ~ 14 MPa (35 ~ 140 kgf/cm²) |
| Max Flow Rate | 50 L/min | 50 L/min | 50 L/min |
