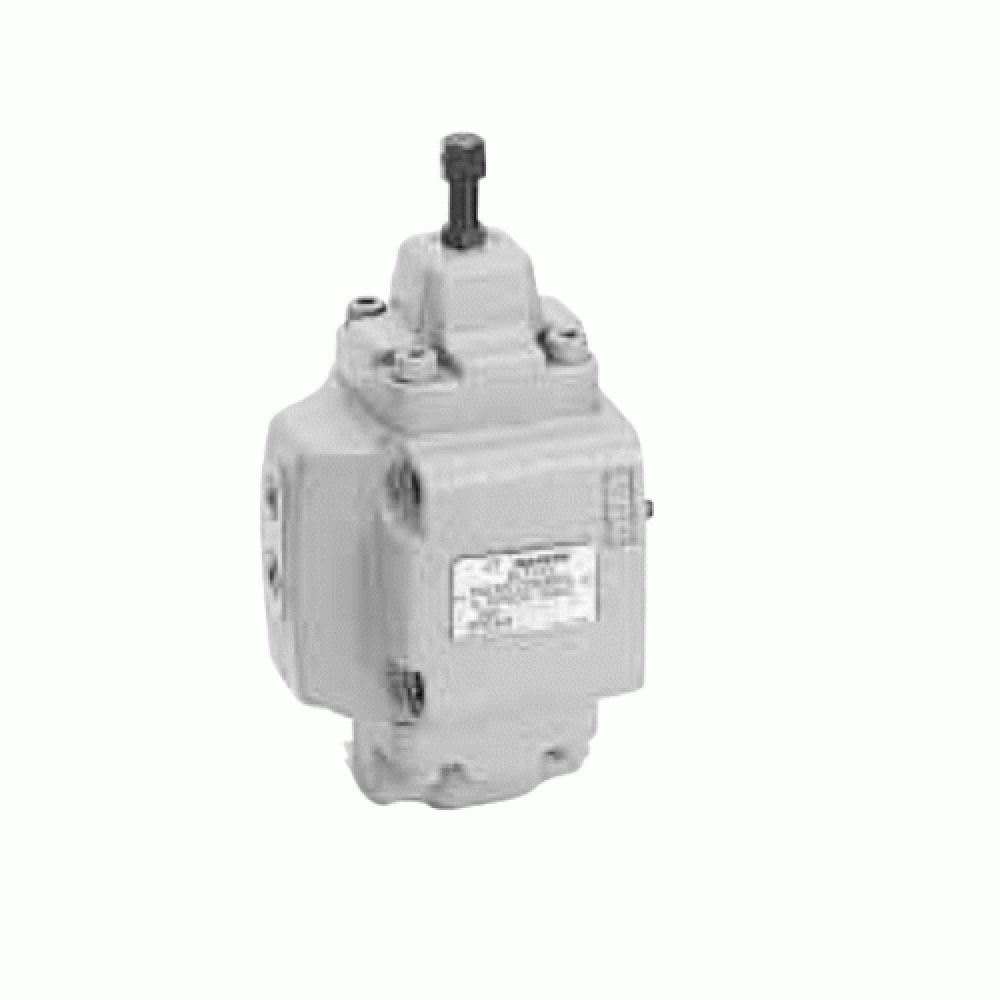

The Daikin JQ Pressure Control Valve is a direct acting valve which can be used for a sequence valve, an unload valve, a counter balance valve and a relief valve in a combination of either internal or external pilot and drain.

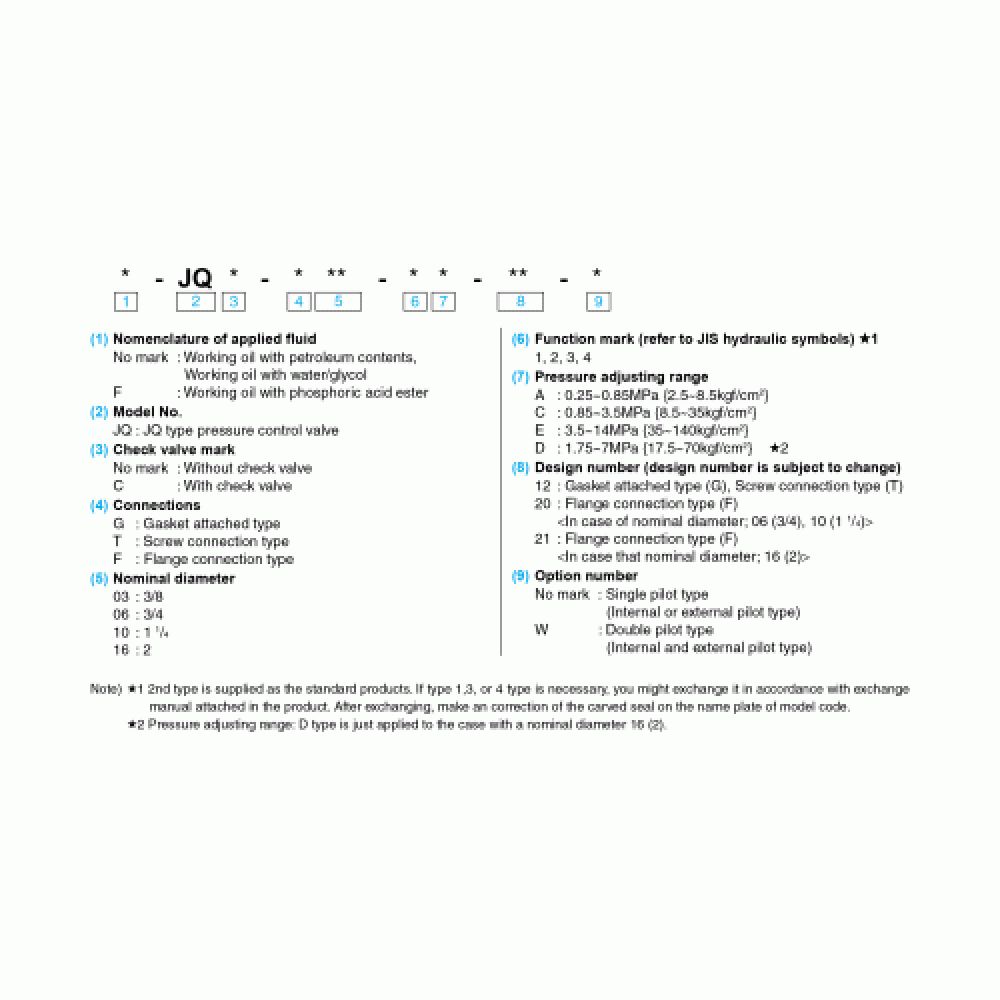

Description | JQ(C)-T10-*A-12 | JQ(C)-T10-*C-12-(W) | JQ(C)-T10-*E-12-(W) |
---|---|---|---|
Nom Diameter | 1¼ | 1¼ | 1¼ |
Max Operating Pressure | 21 MPa (210 kgf/cm²) | 21 MPa (210 kgf/cm²) | 21 MPa (210 kgf/cm²) |
Pressure Adjusting Range | 0.25 ~ 0.85 MPa (2.5 ~ 8.5 kgf/cm² | 0.85 ~ 3.5 MPa (8.5 ~ 35 kgf/cm²) | 3.5 ~ 14 MPa (35 ~ 140 kgf/cm²) |
Max Flow Rate | 280 L/min | 280 L/min | 280 L/min |
