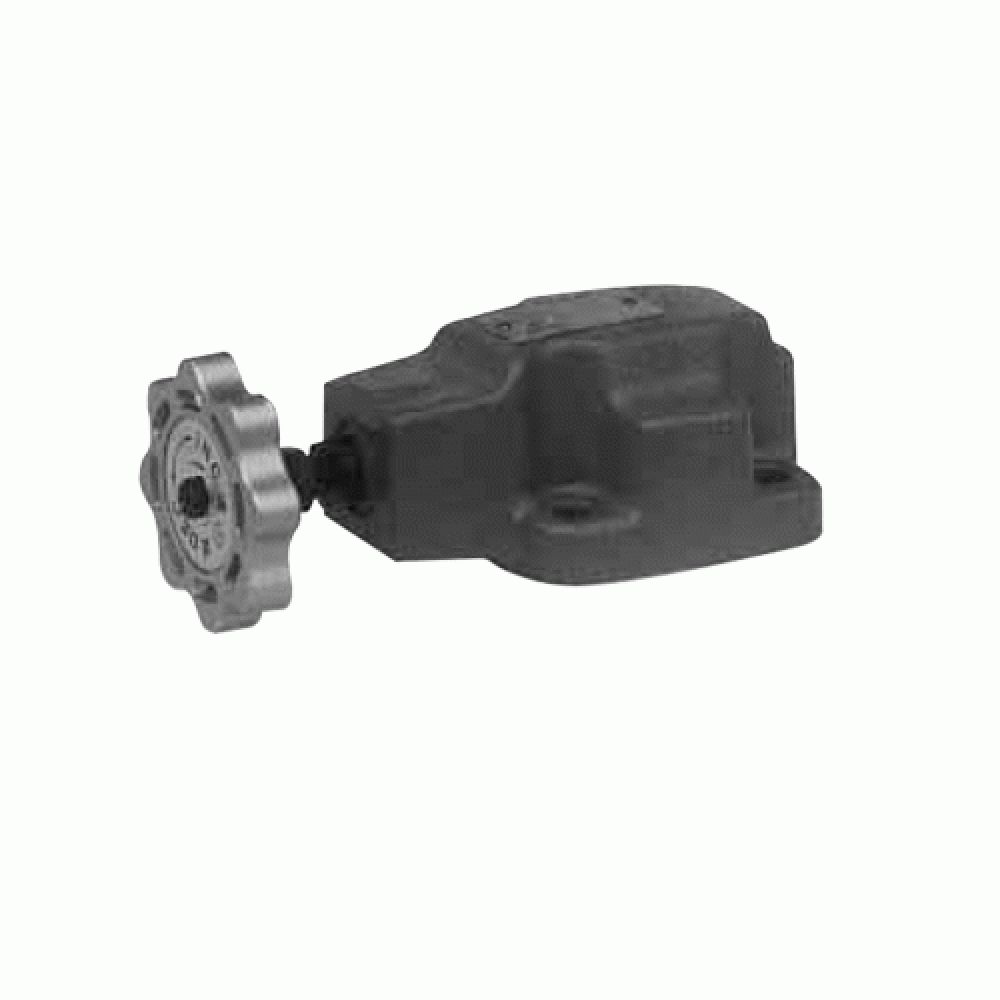

The Daikin JR Direct Operated Relief Valve is used in remote control mode after connecting to a vent port of a pilot operated pressure control valve such as a relief valve, a reducing valve, etc
| Description | JR-G02-1-22 | JR-G02-3-22 | JR-T02-1-22 | JR-T02-3-22 |
|---|---|---|---|---|
| Nominal Diameter | 1/4" | 1/4" | 1/4" | 1/4" |
| Pressure Adjusting Range | 0.8 ~ 7 MPa {8 ~ 70 kgf/cm²} | 3.5 ~ 21 MPa {35 ~ 210 kgf/cm²} | 0.8 ~ 7 MPa {8 ~ 70 kgf/cm²} | 3.5 ~ 21 MPa {35 ~ 210 kgf/cm²} |
| Max Flow Rate | 1.2 L/min | 1.2 L/min | 1.2 L/min | 1.2 L/min |
| Weight | 1.5 Kg | 1.5 Kg | 1.5 Kg | 1.5 Kg |
