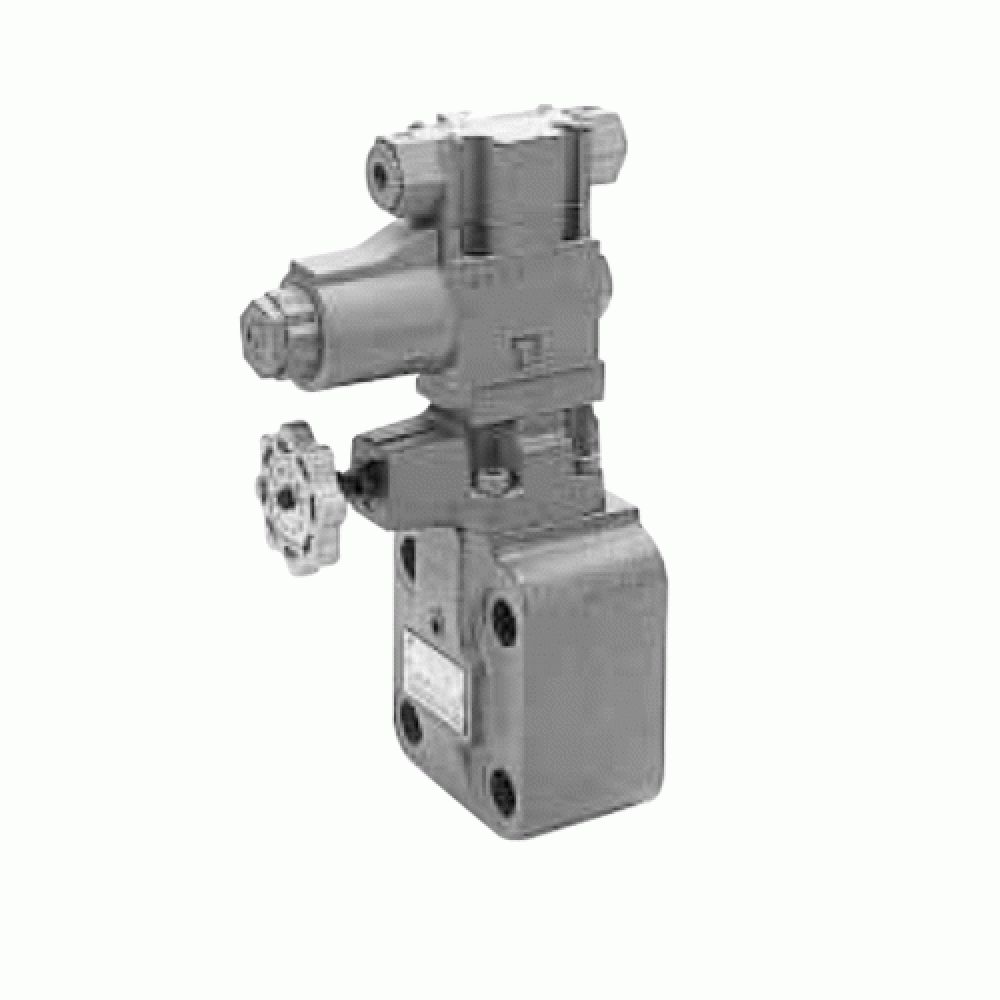

Daikin JRS - Relief Valve with Solenoid Operated Valve image

Daikin JRS - Relief Valve with Solenoid Operated Valve

Name: Zeus Hydratech Ltd
Telephone: +441172130042
Price range: £ - ££££

Daikin

View all specifications ~ scroll down to find the part you need ~

Market leaders in environmentally responsible heat pumps, ventilation and air conditioning systems for domestic, commercial and industrial applications.

The Daikin JRS Relief Valve has a broad flow rate range enables the steady pressure control and this valve actuates as a safety valve.
As this valve itself has a function as an unloading valve, an unloading circuit becomes no need.
Option for high vent type is available.

Downloads & Datasheets

Daikin - JRS - Relief Valve with Solenoid Operated Valve - Datasheet

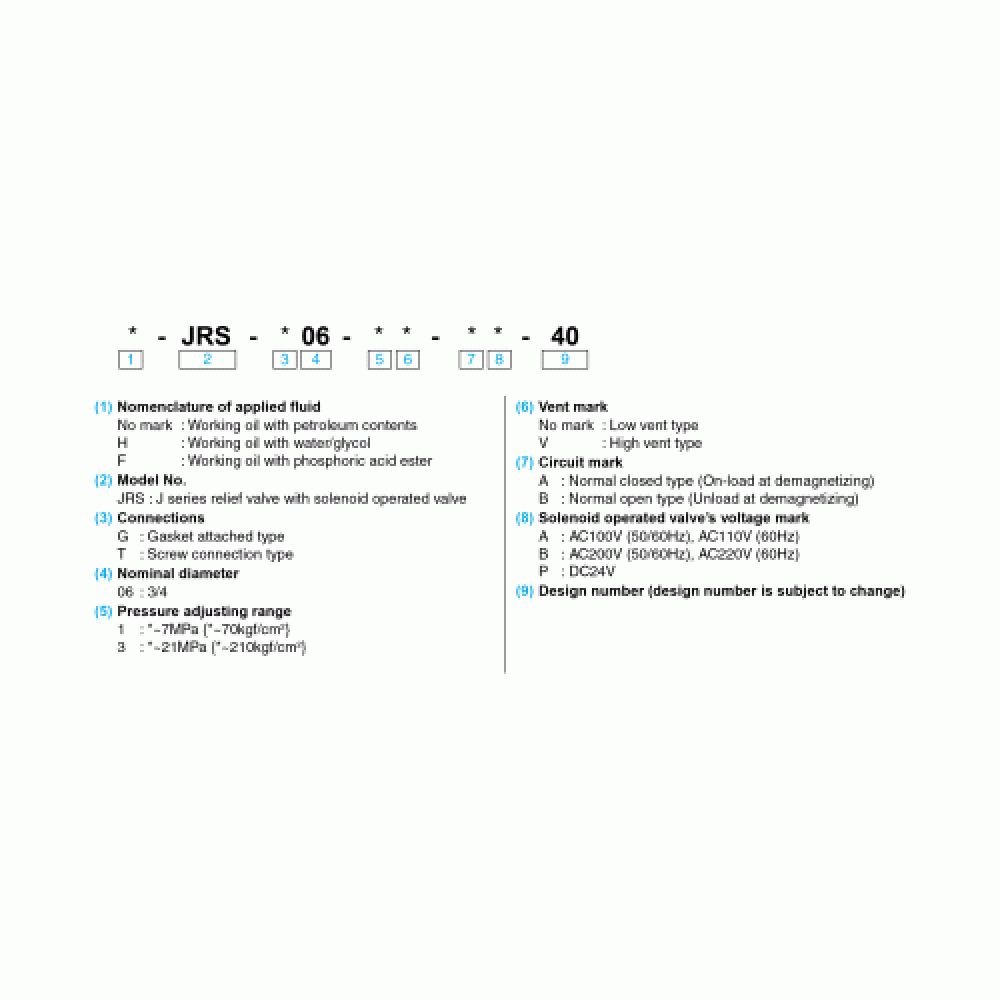

Description	JRS-G06-1--40**	JRS-G06-3--40**	JRS-T06-1--40**	JRS-T06-3--40**
Nominal Diameter	3/4"	3/4"	3/4"	3/4"
Pressure Adjusting Range	*~7 MPa {~70 kgf/cm²}	*~21 MPa {~210 kgf/cm²}	*~7 MPa {~70 kgf/cm²}	*~21 MPa {~210 kgf/cm²}
Max Flow Rate	170 L/min	170 L/min	170 L/min	170 L/min
Weight	8.1 Kg	8.1 Kg	6.7 Kg	6.7 Kg
