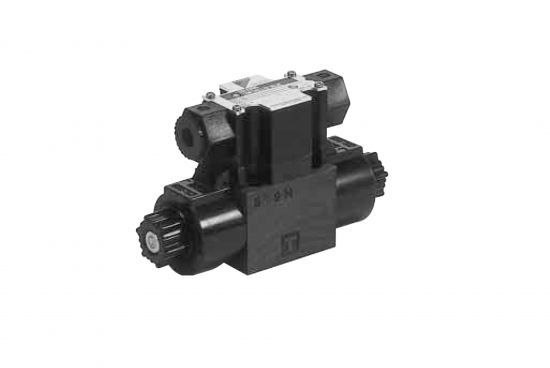

Daikin LS-G02 - Low Watt Type Solenoid Operated Valve

Daikin

View all specifications ~ scroll down to find the part you need ~

Daikin Industries are the market leaders in environmentally responsible hydraulic pumps, valves and power packs for commercial and industrial applications.

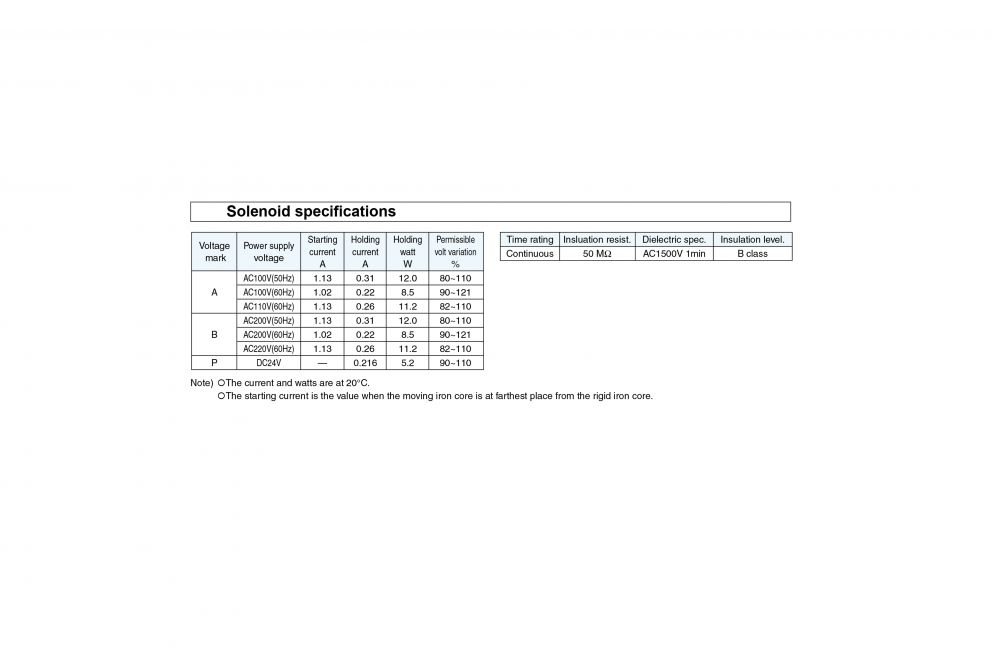

The Daikin LS-G02: Solenoid Operated Valve includes a low watt coil (DC: 5W, AC: 12W). Due to the low watt coil it is possible to drive directly by a programmable sequence controller due to the low current characteristics.

Downloads & Datasheets

Daikin - LS-G02: Low Watt Type Solenoid Operated Valve - Datasheet

Description	LS-G02
Nom. Dia	1/2
Max Operating Pressure	35 MPa (350 kgf/cm²)
Max Flow Rate	300 L/min
Permissible Back Pressure	7 MPa {70 kgf/cm²}
Max Switching Frequency	240 cycle/min
