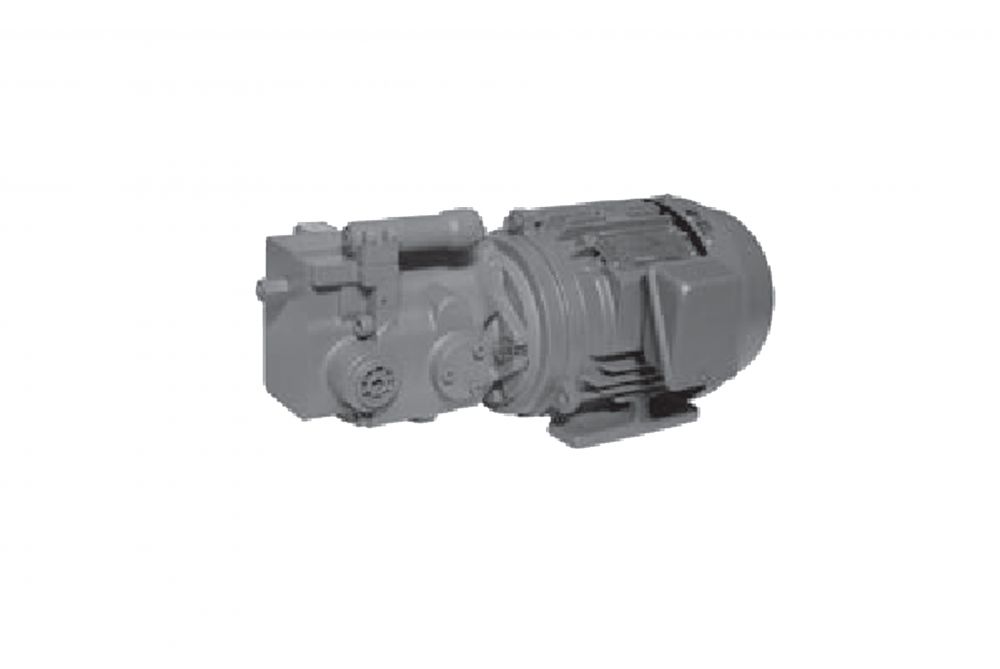

The Daikin M Series Motor pumps integrate with a V series piston pump and an electric motor in one body. The integrated configuration saves you the trouble of centering .
| Description | 05 | 1 | 2 | 3 | 3∗ |
|---|---|---|---|---|---|
| Output/Pole Number | 0.4 kW/4P | 0.75 kW/4P | 1.5 kW/4P | 2.2 kW/4P | 2.2 kW/4P |
| Motor Rated Ampere 200 V (50Hz) | 2.2 A | 3.8 A | 6.8 A | 9.3 A | 8.9 A |
| Motor Rated Ampere 200 V (60Hz) | 2.0 A | 3.4 A | 6.2 A | 8.8 A | 8.5 A |
| Motor Rated Ampere 220 V (50Hz) | 2.0 A | 3.4 A | 6.0 A | 8.3 A | 7.9 A |
| Pump Model M8 (V8 = 8.0 cm3/rev) | Ο | Ο | Χ | Χ | Χ |
| Pump Model M15 (V15 = 14.8 cm3/rev) | Χ | Ο | Ο | Χ | Ο |
| Pump Model M23 (V23 = 23.0 cm3/rev) | Χ | Χ | Χ | Ο | Χ |
| Pump Model M38 (V38 = 37.7 cm3/rev) | Χ | Χ | Χ | Ο | Χ |
| Weight | 9 kg | 14.5 kg | 23.5 kg | 32 kg | 32 kg |
