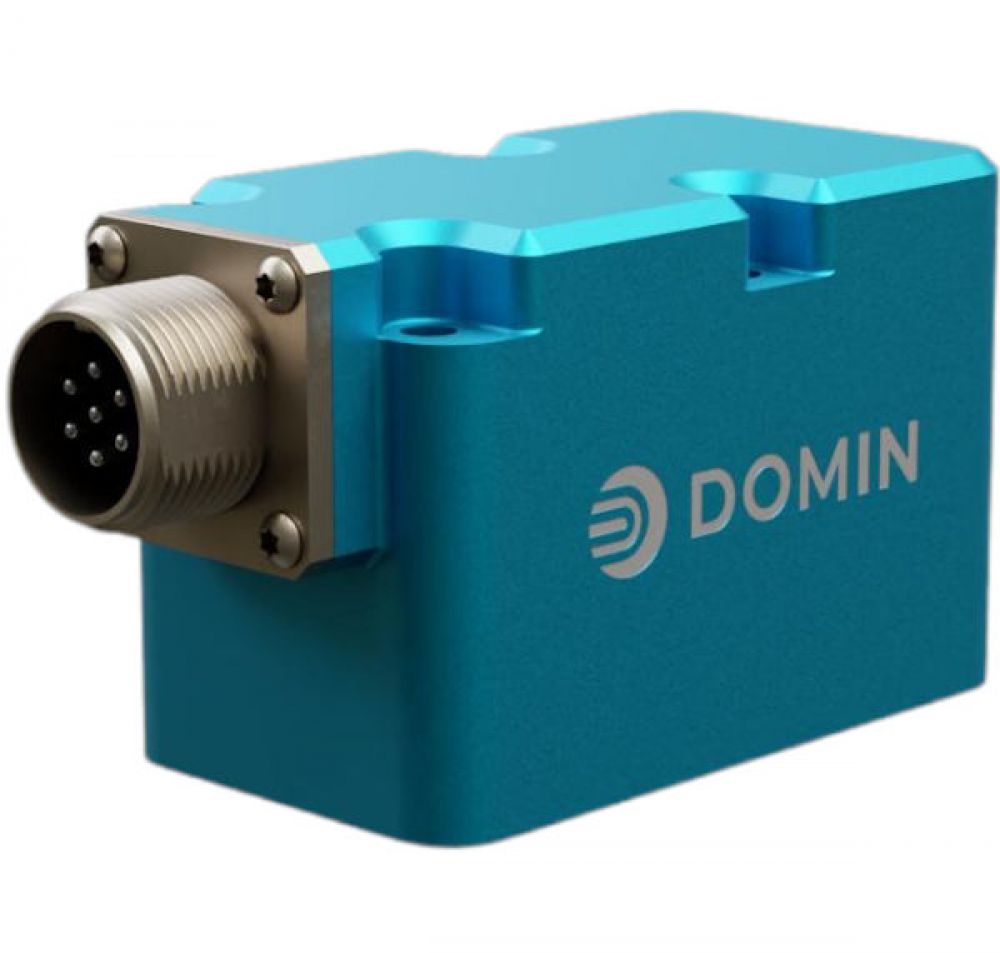

Domin S6 Pro Series Servo Valve (CETOP 03) image

Domin S6 Pro Series Servo Valve (CETOP 03)

Domin

View all specifications

The Domin S6 Pro is a NG06 (CETOP 03) servo proportional valve has been designed to achieve the best characteristics from two competing valve technologies: fluid amplified electrohydraulic valves and proportional valves. The S6 Pro has the size, mass, and dynamic capabilities of the most compact electrohydraulic valves, and the low quiescent leakage and reliability of the best proportional valves.

As well as this, the S6 Pro Servo valve offers valuable upgrades over it's competitors- notably 65% Faster Step response than the Atos DLHZO, 50% Higher Flow than the Bosch Rexroth 4WRPEH 6 and is also 78% Lighter than the Moog D633.

Explore

Vist the Domin website, to explore more about their business and the pioneering servo valve technology they have developed, or view our recent blog post: Unlocking Precision: The Benefits of Utilising Hydraulic Servo Valves.

The Domin S6 Pro valve also underwent extensive testing at the hands of Delta Motion, providing exceptional results in key areas.

Key Stats

Hysterisis - < 0.2%
Leakage - < 1.1 l/min
Mass - 550g
Frequency Response - > 190 Hz
Rated Flow - 18-60 l/min
Response Time - < 3.5 ms

Common Applications

Blow / Injection Moulding
Die Casting
Metal Processing
Simulation
Vibration Equipment
Wood / Timber Machines

Downloads & Datasheets

S6 Pro Series Datasheet

Technical Data

General Data
Design	Direct Drive Servo Valve
Actuation	Rotary-Linear
Size	NG06
Mounting Interface	ISO 4401-03-02-0-05
Ambient Temperature °C	-20 to +60
Mass kg	0.55
Vibartion Resistance, All Axes g	30
Shock Resistance, All Axes g	50

Hydraulic Data
Max. Operating Pressure (P, A, B) bar	350
Max. Operating Pressure (T) bar	250
Fluid	Hydraulic Oil DIN 51524-535
Fluid Temperature °C	-20 to +80
Viscosity cSt	5 to 500
Rated Flow l/min	6 to 60
Flow Maximum l/min	130
Leakage @100 bar l/min	< 1.1
Filtration	ISO 4406 (1999) 18/16/13
