Duplomatic Oleodinamica represents the real alternative in the hydraulics market. Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

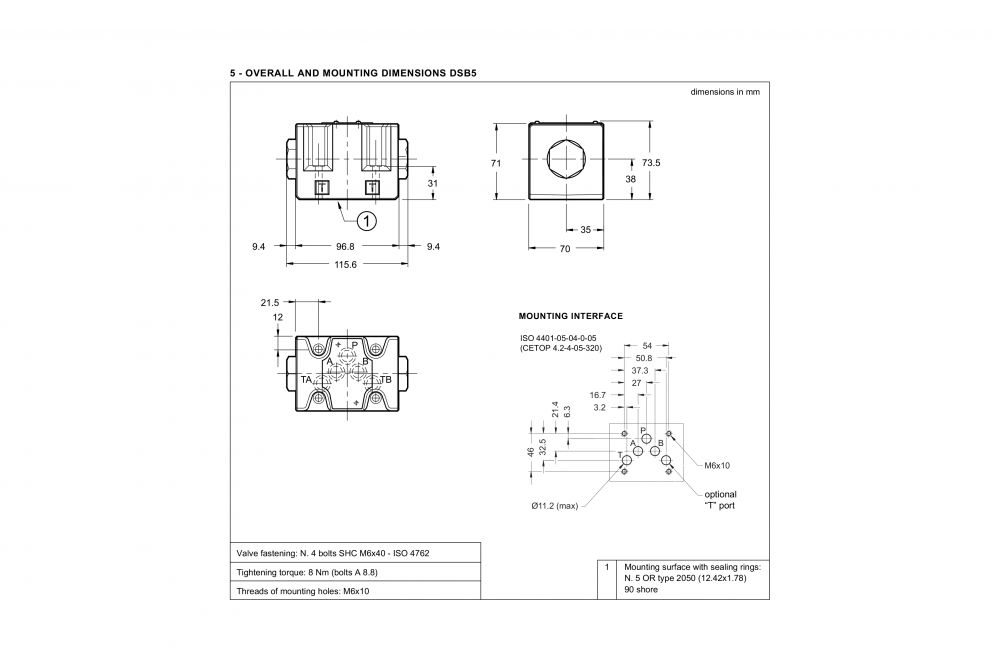

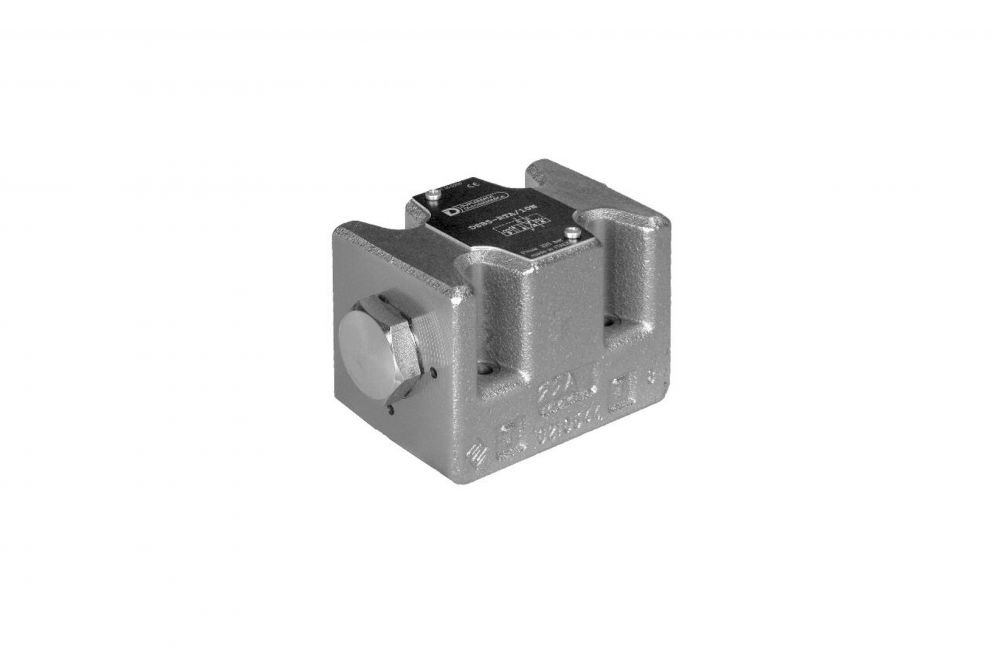

The Duplomatic DSB5 is a directional control valve, with hydraulic control. It realizes the reciprocation of the flow direction when the flowrate stops in A or B line. Particularly suitable for the mobile applications, especially for waste collection and compaction, it can be used every time an automatic movement for material compression is required.

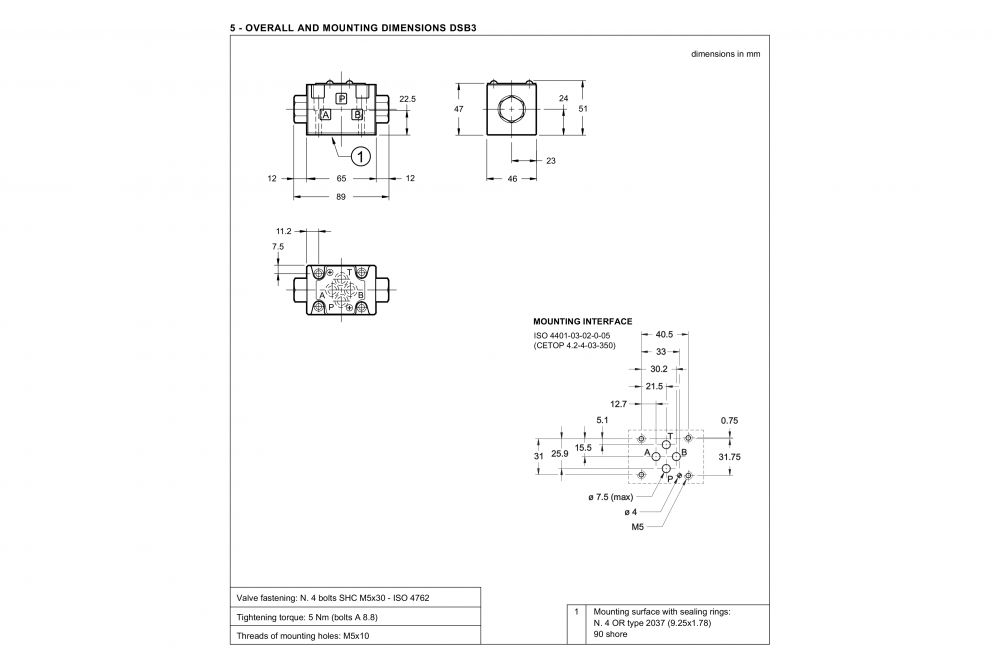

| Description | DSB3 | DSB5 |
|---|---|---|
| Maximum Working Pressure: P - A - B Ports | 350 bar | 320 bar |
| Minimum Allowed Pressure | 210 bar | 160 bar |
| Maximum Flow Rate | 30 l/min | 150 l/min |
| Minimum Allowed Flow Rate | 3 l/min | 150 l/min |
| Ambient Temperature Range | -20 / 50 °C | -20 / 50 °C |
| Fluid Temperature Range | -20 / 80 °C | -20 / 80 °C |
| Fluid Viscosity Range | 10 ÷ 400 cSt | 10 ÷ 400 cSt |
| Fluid Contamination Degree | According to ISO 4406:1999 Class 20/18/15 | According to ISO 4406:1999 Class 20/18/15 |
| Recommended Viscosity | 25 cSt | 25 cSt |
| Mass | 0,9 kg | 2,8 kg |
| Surface Finishing | Zinc-Nickel Surface Treatment | Zinc-Nickel Surface Treatment |
