Duplomatic Oleodinamica represents the real alternative in the hydraulics market. Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

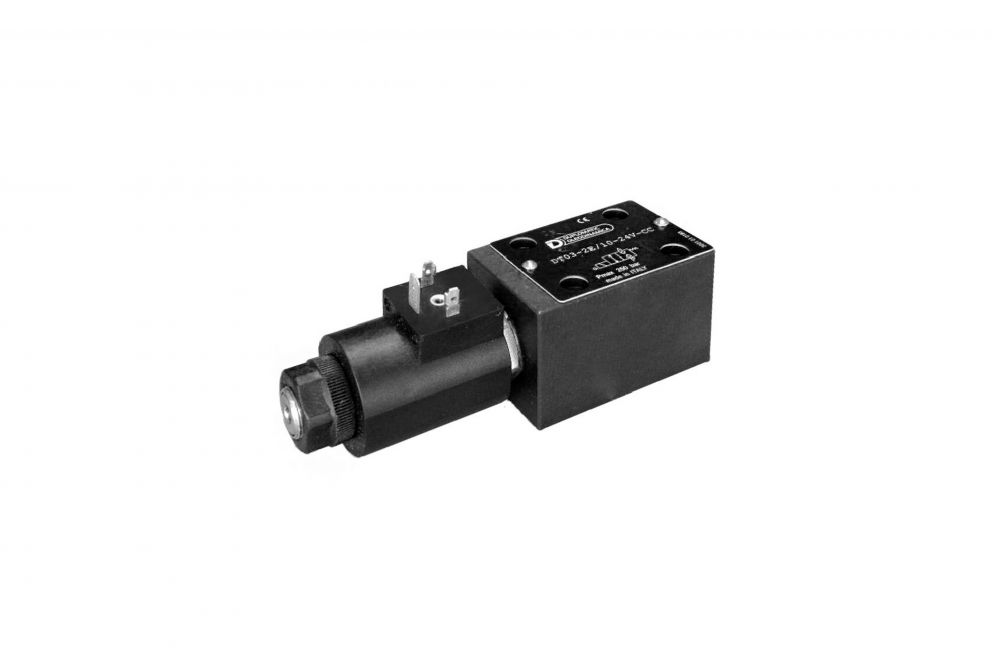

The Duplomatic DT03 Direct-acting control CETOP 03 hydraulic valve with conical seat seal.
Two- or three-way versions with possibility of seal in both directions for two-way valves.
Leakproof solenoids in oil bath, available in alternating and direct current supply voltages.
Tech specs: pmax: 250 bar - Qmax: 25 l/min
| Description | Units |
|---|---|
| Maximum Operating Pressure | 250 bar |
| Maximum Flow Rate | 25 l/min |
| Ambient Temperature Range | -20 / 50 °C |
| Fluid Temperature Range | -20 / 80 °C |
| Fluid Viscosity Range | 10 ÷ 400 cSt |
| Fluid Contamination Degree | According to ISO 4406:1999 Class 20/18/15 |
| Recommended Viscosity | 25 cSt |
| Mass | 1,3 kg |
