Duplomatic Oleodinamica represents the real alternative in the hydraulics market. Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

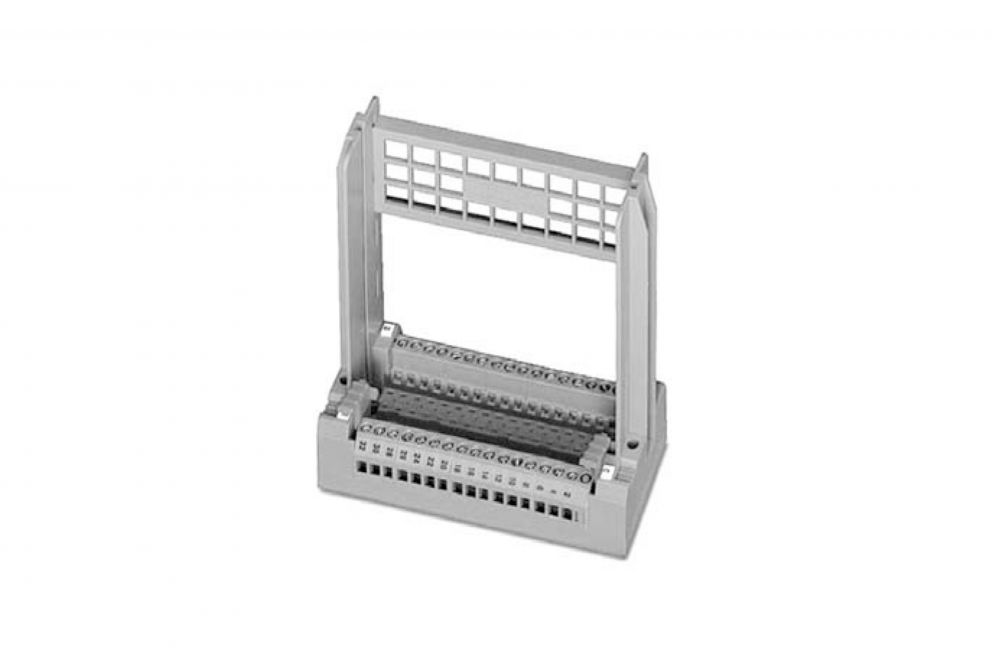

The Duplomatic card holders type PSC are accessories suitable to be installed on electronic control units type UEIK.
They are available with a IEC 603 / DIN 41612 connector, with a female fitting, either D shape 32 poles, or F shape 48 poles.
They are supplied with a special safety locking, which blocks the electronic control unit and prevents any accidental contact loss between the two used connectors.
The conductor wiring is carried out via a terminal block with fastening bolts.
They can be installed inside a switchboard and be fixed directly on a plate.
| Description | Units | Units |
|---|---|---|
| Connector Type |
IEC 603 / DIN 41612
female
|
IEC 603 / DIN 41612
female
|
| Number of Poles | 32 | 48 |
| Connector Shape | D | F |
| Nominal Voltage | 250 V | 250 V |
| Nominal Current | 4 A | 4 A |
| Flexible Conductors Max Section | 2.5 mm² | 2.5 mm² |
| Stiff Conductors Max Section | 4 mm² | 4 mm² |
| Conductors Wiring | Terminal Block with Fastening Bolts | Terminal Block with Fastening Bolts |
