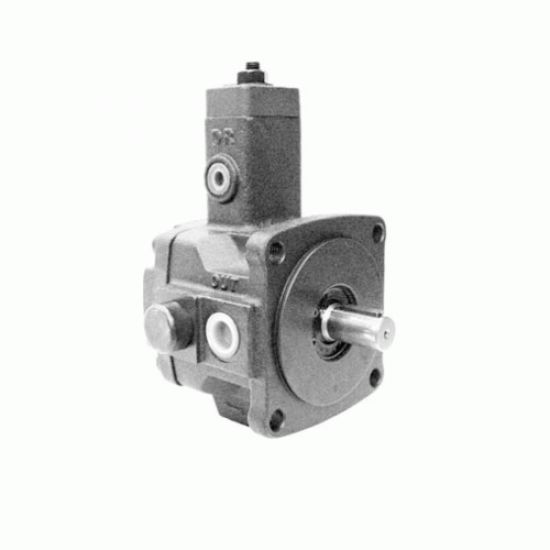

Duplomatic PVE - Variable Displacement Vane Pumps with Direct Pressure Regulator image

Duplomatic PVE - Variable Displacement Vane Pumps with Direct Pressure Regulator

Duplomatic

View all specifications ~ scroll down to find the part you need ~

Duplomatic Oleodinamica represents the real alternative in the hydraulics market. Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

The Duplomatic PVE pumps are variable displacement vane pumps with direct pressure regulator.

The pump group is complete with hydrostatic axial compensation distribution plates that improve the volumetric efficiency and reduce wear of the components.
The pressure regulator adjustable load spring keeps the pump group cam ring in eccentric position. When the delivery pressure equals the pressure corresponding to the spring setting, the cam ring is moved so to reduce the displacement, adjusting the flow rate to the values required by the plant. In zero flow demand conditions, the pump delivers oil only to compensate any possible bleedings, keeping the circuit pressure constant.
The PVE pumps are available in four dimensions with maximum displacement from 6,6 to 22,2 cm³/rev and with pressure regulator max setting values up to 35 bar and 70 bar (standard).

Downloads & Datasheets

Duplomatic - PVE - Variable Displacement Vane Pumps with Direct Pressure Regulator - Data Sheet

Description	006	011	016	023
Displacement	6,6 cm³/rev	11,1 cm³/rev	16,6 cm³/rev	22,2 cm³/rev
Flow Rate (at 1.500 rpm and with 3.5 bar delivery pressure)	10,0 l/min	16,7 l/min	25,0 l/min	33,3 l/min
Operating Pressure	70 bar	70 bar	70 bar	70 bar
Rotation Speed	Min 700 - Max 1800 rpm	Min 700 - Max 1800 rpm	Min 700 - Max 1800 rpm	Min 700 - Max 1800 rpm
Rotation Direction	Clockwise (Seen from the Shaft Side)	Clockwise (Seen from the Shaft Side)	Clockwise (Seen from the Shaft Side)	Clockwise (Seen from the Shaft Side)
Shaft Loads	Radial and Axial loads are not Allowed	Radial and Axial loads are not Allowed	Radial and Axial loads are not Allowed	Radial and Axial loads are not Allowed
Hydraulic Connection	BSPP (Parallel) threading fittings	BSPP (Parallel) threading fittings	BSPP (Parallel) threading fittings	BSPP (Parallel) threading fittings
Type of Mounting	SAE Flange J744 - 2 Holes	SAE Flange J744 - 2 Holes	Rectangular Flange - 4 Holes	Rectangular Flange - 4 Holes
Ambient Temperature Range	-20 / 50 °C	-20 / 50 °C	-20 / 50 °C	-20 / 50 °C
Fluid Temperature Range	-10 / 70 °C	-10 / 70 °C	-10 / 70 °C	-10 / 70 °C
Recommended Viscosity	25 ÷ 50 cSt	25 ÷ 50 cSt	25 ÷ 50 cSt	25 ÷ 50 cSt
Mass	5 kg	6 kg	9 kg	9 kg
