Duplomatic Oleodinamica designs and produces a complete range of hydraulic components that are suitable for all application sectors of both industrial and mobile fields.

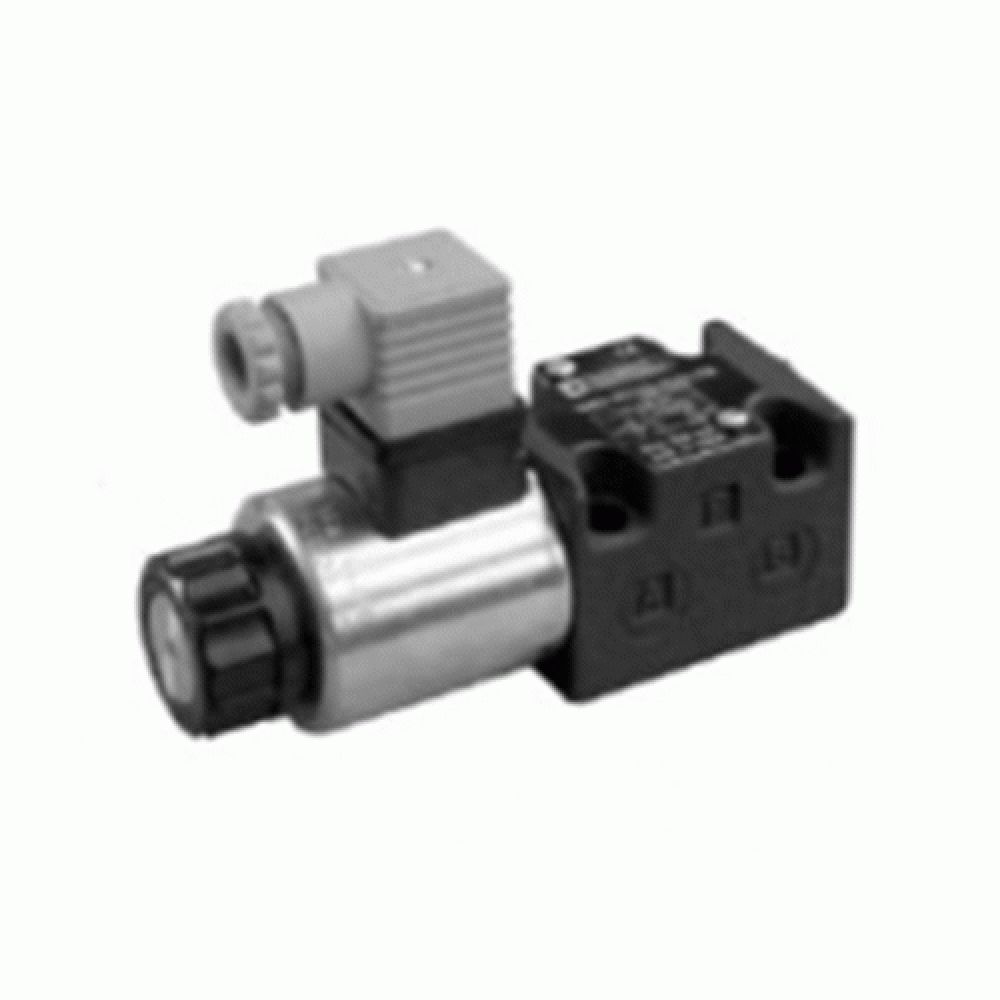

The Duplomatic QDE* are a compensated flow control proportional valves, CETOP 05, with pressure compensation and mounting surface according to ISO 6263-03 and ISO 4401-05 (CETOP RP121H), supplied with 2 or 3 way design, depending on the use of port P. This valve is used for the regulation of the flow in branches of a hydraulic circuit or for the speed control of hydraulic cylinders. The flow can modulated continuously in proportion to the current supplied by the solenoid The valve can be controlled directly from a current controlled power supply or with an integrated electronic, which allow to fully exploit the performance of the valve. QDE* valves are available in two sizes, for 5 flow adjustment ranges of up to 80 l/min.
| Description | QED3 | QDE5 |
|---|---|---|
| Maximum Operating Pressure | 250 Bar | 250 Bar |
| Controlled Flow | 14 / 20 / 30 / 40 l/min | 80 l/min |
| Minimum Suggested Input Flow | 40 / 50 / 40 / 50 l/min | 90 l/min |
| Spring Setting in Pressure Compensator | 4 / 8 / 4 / 8 Bar | 8 bar |
| Minimum Pressure Drop A > B | 10 / 22 / 10 / 22 Bar | 22 bar |
| Hysteresis (with PWM 100 Hz) | <6 % of Q Max | <2 % of Q Max |
| Repeatability | < 1.5 % of Q Max | < 1.5 % of Q Max |
| Ambient Temperature Range | -20 / 60°C | -20 / 60°C |
| Fluid Temperature Range | - 20 / 80°C | - 20 / 80°C |
| Fluid Viscosity Range | 10 ÷ 400 cSt | 10 ÷ 400 cSt |
| Fluid Contamination Degree | According to ISO 4406:1999 class 18/16/13 | According to ISO 4406:1999 class 18/16/13 |
| Recommended Viscosity | 25 cSt | 25 cSt |
| Mass | 1.6Kg | 4.6Kg |
