Duplomatic Oleodinamica designs and produces a complete range of hydraulic components that are suitable for all application sectors of both industrial and mobile fields.

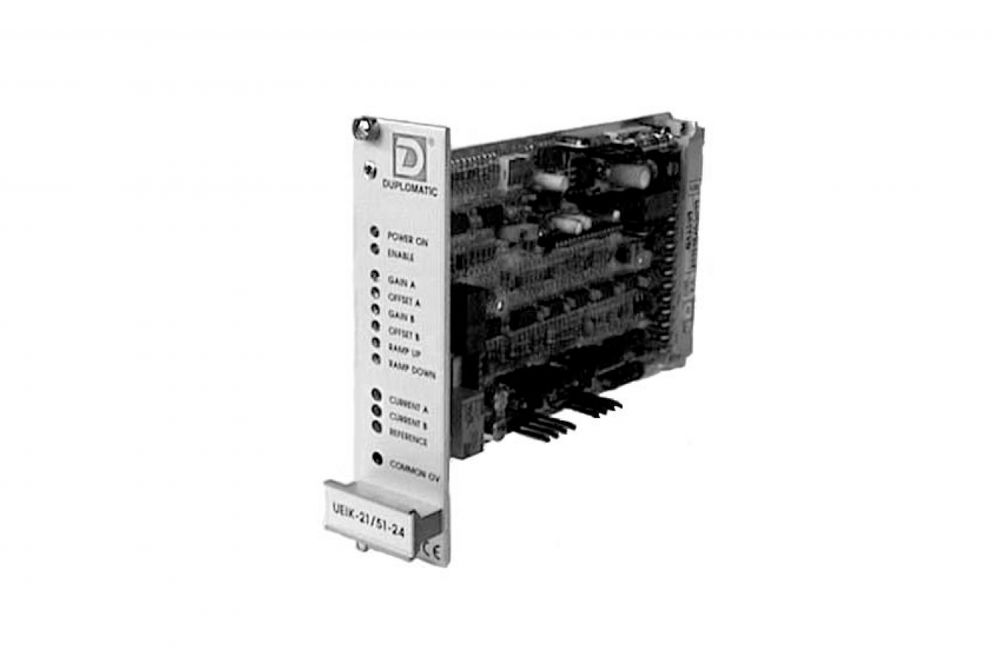

The Duplomatic UEIK-2* card is an electronic control unit Eurocard type for open loop of double solenoid proportional valves.
The unit supplies a variable current in proportion to the input reference signal and independently of temperature variations or load impedence.
The PWM stage on the solenoid power supply makes it possible to reduce valve hysteresis thus optimising control precision. The front panel is fitted with LEDs to indicate card functions and potentiometers to optimize control.
| Description | Units |
|---|---|
| Power Supply | 22 ÷ 30 Ripple Included |
| Power Supply Electrical Protection | - Overload - Polarity Inversion |
| Reference Signal - Voltage | 10 V |
| Reference Signal - Current | 4 ÷ 20 mA |
| Input Reference Signal Impedance - Voltage | 10 kΩ |
| Input Reference Signal Impedance - Current | 250 Ω |
| Electromagnetic Compatibility (EMC) | In Compliance with 2004/108/CE |

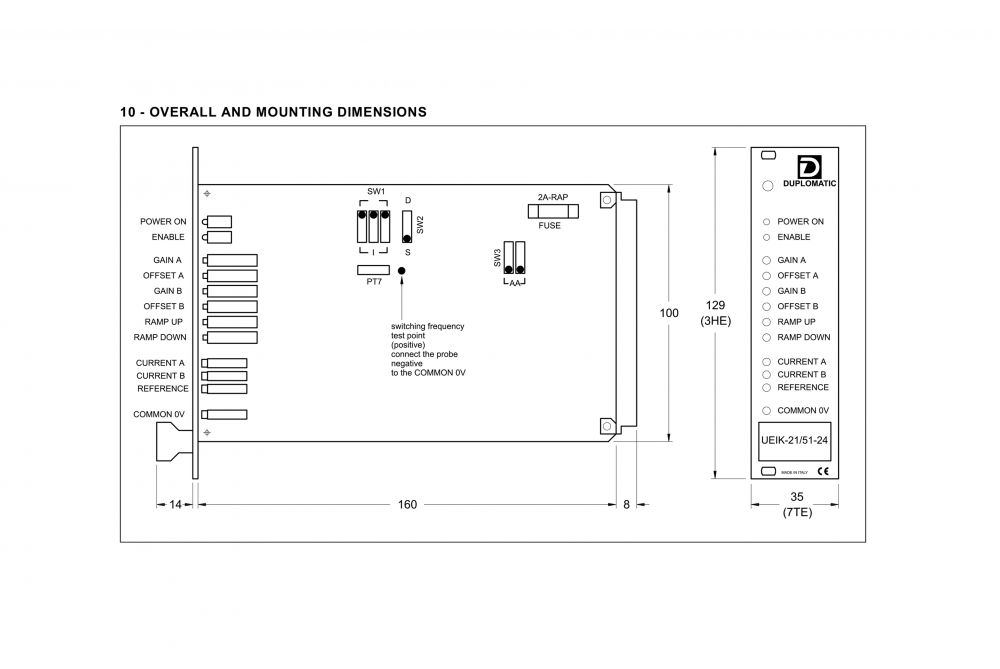

| Card Size | Eurocard 100 x 160 x 35 |
| Connector Interface | DIN 41612-D 32 Male |
| Operating Temperature Range | 0 ÷ 50 °C |
| Mass | 0.27 kg |
