Duplomatic Oleodinamica designs and produces a complete range of hydraulic components that are suitable for all application sectors of both industrial and mobile fields.

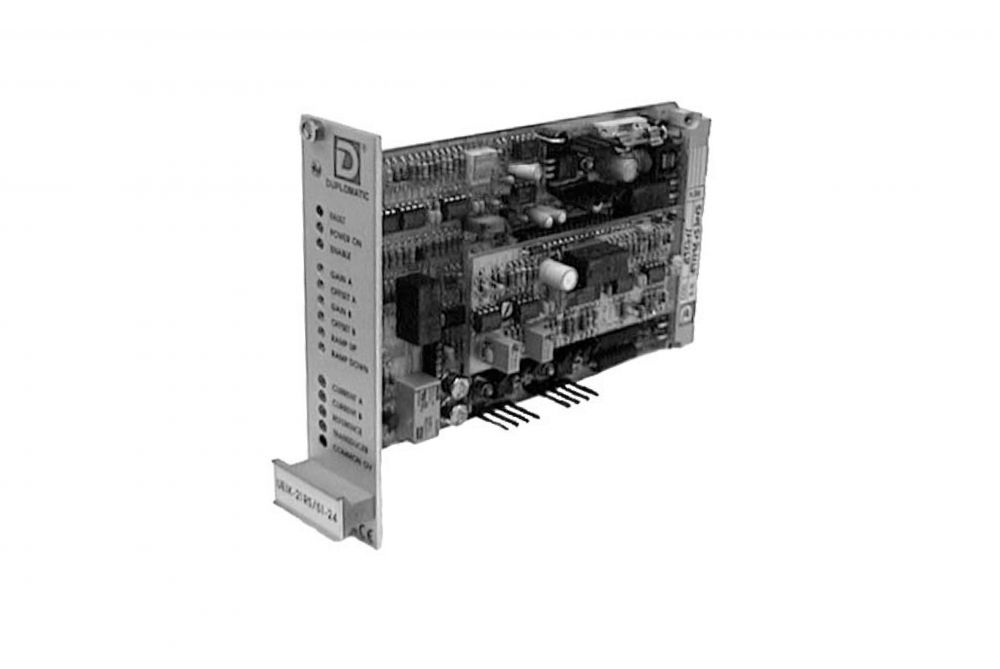

The Duplomatic UEIK-21RS card is an electronic control unit Eurocard type for closed loop control of double solenoid proportional valves with positional feedback control.
The unit controls the position of the valve spool according to the reference input signal ensuring linear regulation with minimum hysteresis.
The front panel is fitted with LEDs to indicate card functions and potentiometers to optimise performance.
Description | Units |
---|---|
Power Supply | 22 ÷ 30 Ripple Included |
Required Power | 45 W |
Power Supply Electrical Protection | - Overload - Polarity Inversion |
Reference Signal - Voltage | 10 V |
Reference Signal - Current | 4 ÷ 20 mA |
Input Reference Signal Impedance - Voltage | 10 kΩ |
Input Reference Signal Impedance - Current | 250 Ω |
Electromagnetic Compatibility (EMC) | In Compliance with 2004/108/CE |
Card Size | Eurocard 100 x 160 x 35 |
Connector Interface | DIN 41612-D 32 Male |
Operating Temperature Range | 0 ÷ 50 °C |
Mass | 0.27 kg |
