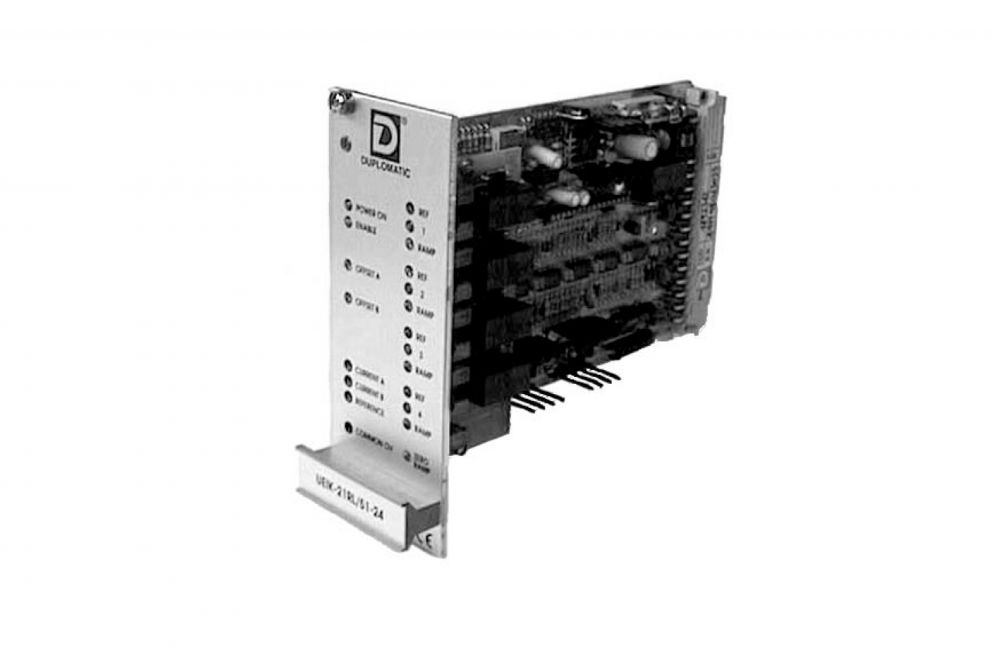

Duplomatic UEIK-2*RL - Electronic Control Unit for Open Loop Double Solenoid Proportional Valve

Duplomatic

View all specifications ~ scroll down to find the part you need ~

Duplomatic Oleodinamica represents the real alternative in the hydraulics market. Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

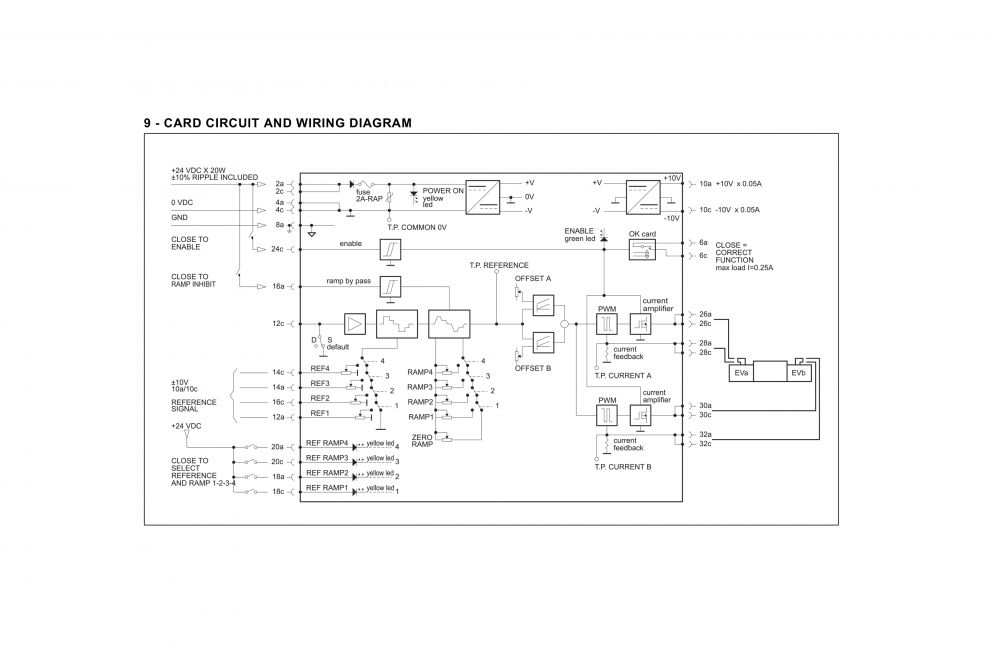

The UEIK-2*RL card is an electronic control unit in Eurocard format for open loop control of double solenoid proportional valves, with selection in sequence of four different reference and ramp time regulation signals.

The unit is suitable for management of “fast-slow” work cycles.

The front panel is fitted with LEDs to indicate card functions and potentiometers to optimise performance.

Downloads & Datasheets

Duplomatic - UEIK-2*RL - Electronic Control Unit for Open Loop Double Solenoid Proportional Valve - Data Sheet

Description	Units
Power Supply	22 ÷ 30 Ripple Included
Required Power	45 W
Power Supply Electrical Protection	- Overload - Polarity Inversion
Reference Signal - Voltage	10 V
Reference Signal - Current	4 ÷ 20 mA
Electromagnetic Compatibility (EMC)	In Compliance with 2004/108/CE

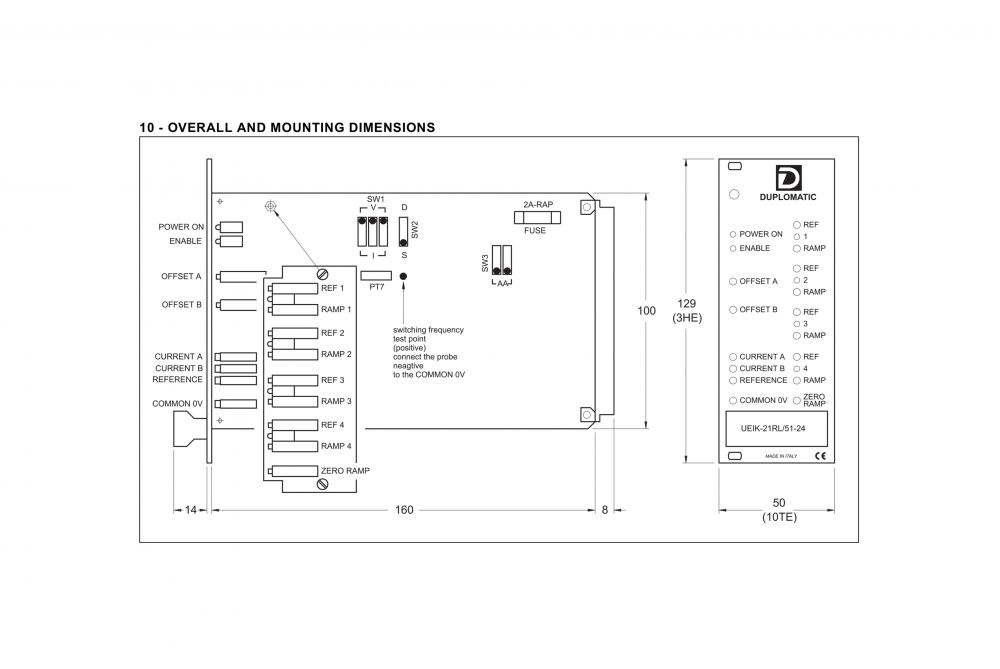

Card Size	Eurocard 100 x 160 x 35
Connector Interface	DIN 41612-D 32 Male
Operating Temperature Range	0 ÷ 50 °C
Mass	0.3 kg
