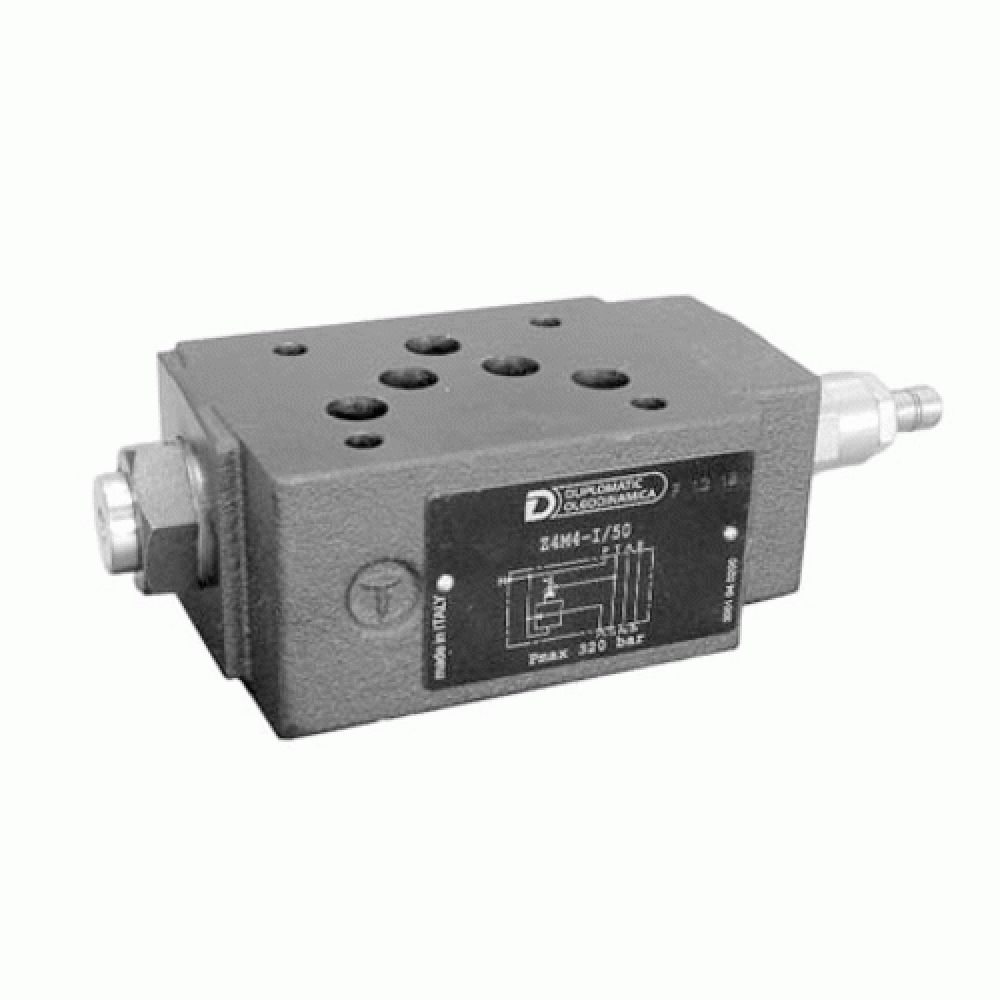

Duplomatic Oleodinamica represents the real alternative in the hydraulics market. Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.The Duplomatic Z4M valve is a piloted pressure reducing valve made as a modular version with mounting surface according to the ISO 4401 (CETOP PR 121H) standards.
Used to reduce pressure on secondary circuit branches, assuring stability of the controlled pressure and even changing the flow that runs through the It can be assembled quickly under the ISO 4401-05 (CETOP 05) directional solenoid valves without use of pipes. It is normally supplied with a countersunk hex adjustment screw, locking nut and maximum adjustment travel limiting device. Available in four different pressure adjustment ranges up to 320 bar.
Description | Units |
---|---|
Maximum Operating Pressure | 320 bar |
Maximum Flow Rate in the Controlled Line P | 80 l/min |
Maximum Flow Rate in the Free Lines | 100 l/min |
Drainage Flow Rate | ≤0,07 l/min |
Ambient Temperature Range | -20 / 50°C |
Fluid Temperature Range | -20 / 80°C |
Fluid Viscosity Range | 10 ÷ 400 cSt |
Fluid Contamination Degree | According to ISO 4406:1999 Class 20/18/15 |
Recommended Viscosity | 25 cSt |
Mass | 2,7 kg |
