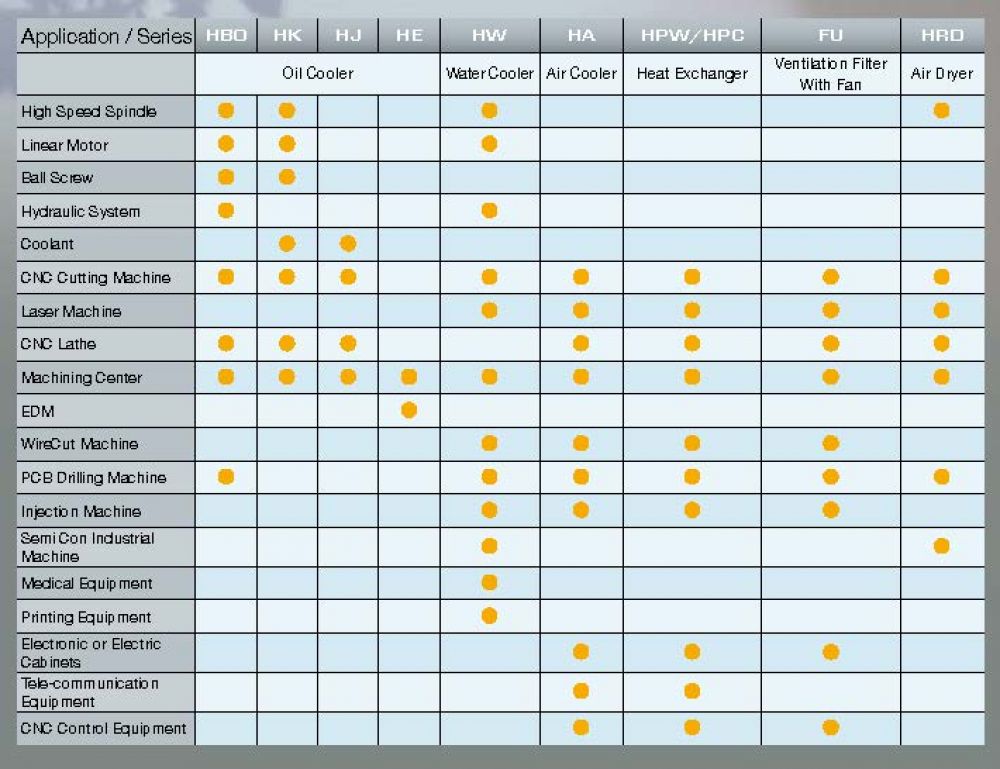

Habor refrigeration chillers (utilised in both oil and water-cooling installations) are manufactured in Taiwan. The Habor range of chillers is broad and can be found in multiple applications including, precision CNC machine tools & spark errosion processes (for cooling their hydraulic systems and cooling of cutting fluids.
The Habor chillers have been precision engineered to deliver accurate fluid temperature control for optimal performance and reliability.

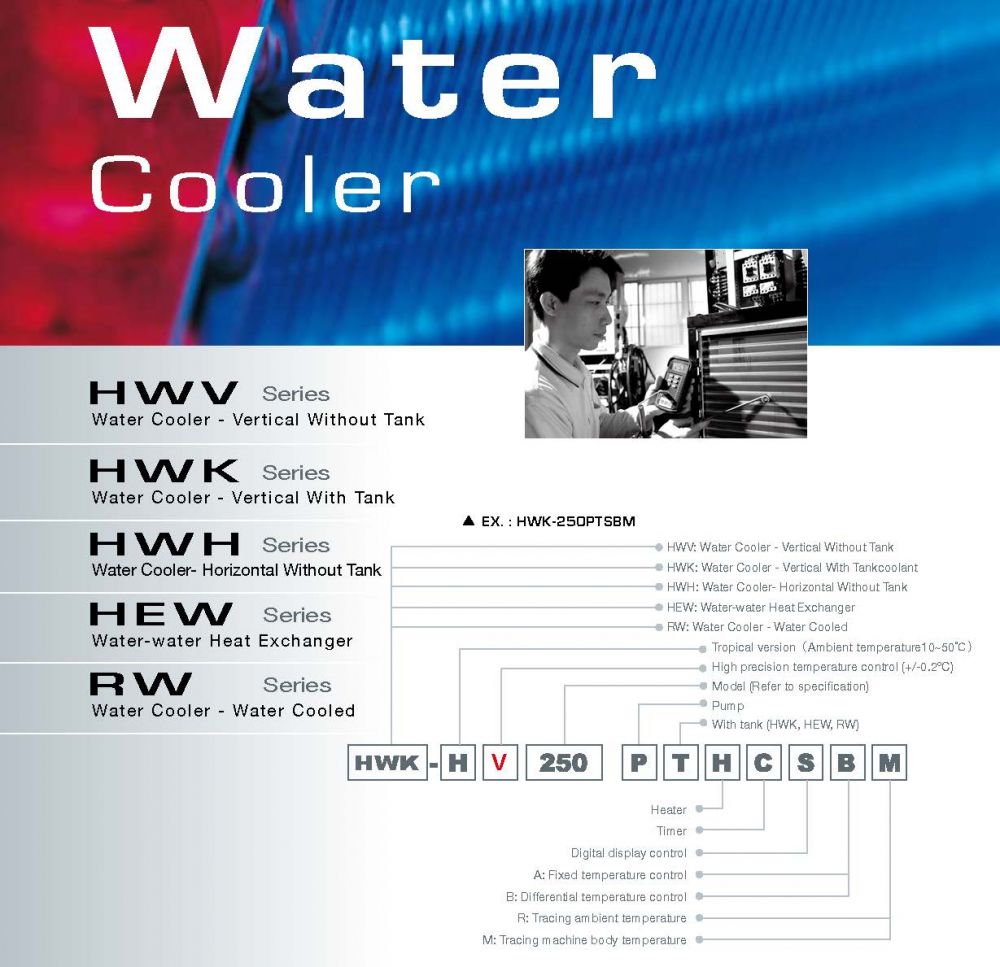

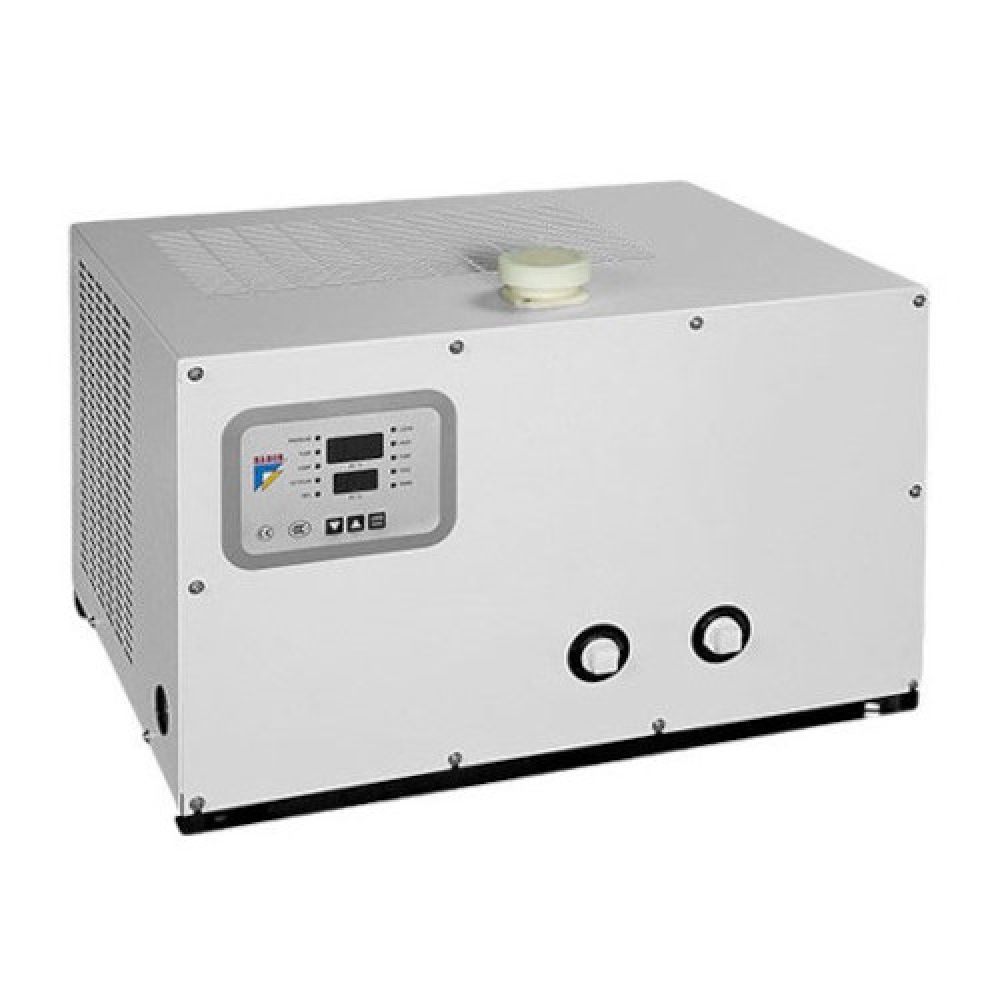

The HWH range is a Horizontal water heat exchanger unit without tank.
Features:
We offer a comprehensive range of spare parts to repair your existing Habor chiller unit . Please call +44(0)1172 130042 or Email with your chiller part and serial number for availability.
| Model Number | HWH-250PS | HWH-400PS | HWH-600PS | HWH-750PS | HWH-900PS | HWH-1000PS | |
|---|---|---|---|---|---|---|---|
Cooling capacity |
KCAL/H. 50/60Hz | 840/1000 | 1250/1500 | 1700/2100 | 2600/3000 | 3200/3800 | 3750/4500 |
| W. 50/60Hz | 980/1170 | 1450/1750 | 1970/2450 | 2900/3500 | 3700/4400 | 4350/5250 | |
| BTU/H. 50/60Hz | 3360/4000 | 5000/6000 | 6700/8300 | 10000/12000 | 12800/15200 | 15000/18000 | |
| Temperature controller |
A | Fixed temperature control type (Setting range 10~40°C) | |||||
| B | Differential temperature control type (tracing ambient.machine body temperature, setting range -9.9~+9.9°C | ||||||
| Use range |
Ambient Temp °C | 10~40°C (Standard) | |||||
| Liquid Temp °C | 10~30°C | ||||||
| Power source | 3Ø 200~230V 5060Hz | ||||||
| Compressor/Fan motor (W) | 478/50 | 845/50 | 1185/95 | 1500/125 | 1700/125 | ||
| Pump | W | 57 | 80 | 135 | |||
| Max flow rate (l/min) | 27/31 | 32/38 | 45/52 | ||||
| Max liquid lift (M) | 3.1/4.3 | 3.8/5.4 | 4.6/52 | ||||
| Liquid inlet diameter | PT 3/4" | ||||||
| Liquid Outlet diameter | PT 3/4" | ||||||
| Dimension WxDxH (mm) | 540x400x340 | 630x420x420 | 630x480x520 | 710x540x570 | 710x540x570 | ||
| Weight (kg) | 44 | 65 | 65 | 74 | 83 | 83 | |
| Noise level (dB) | Below 70 dB(A) | ||||||
Please note: The cooling capacity stated above is based on teh condition of liquid temperature 22°C, Ambient temperature of 32°C and 60Hz.
