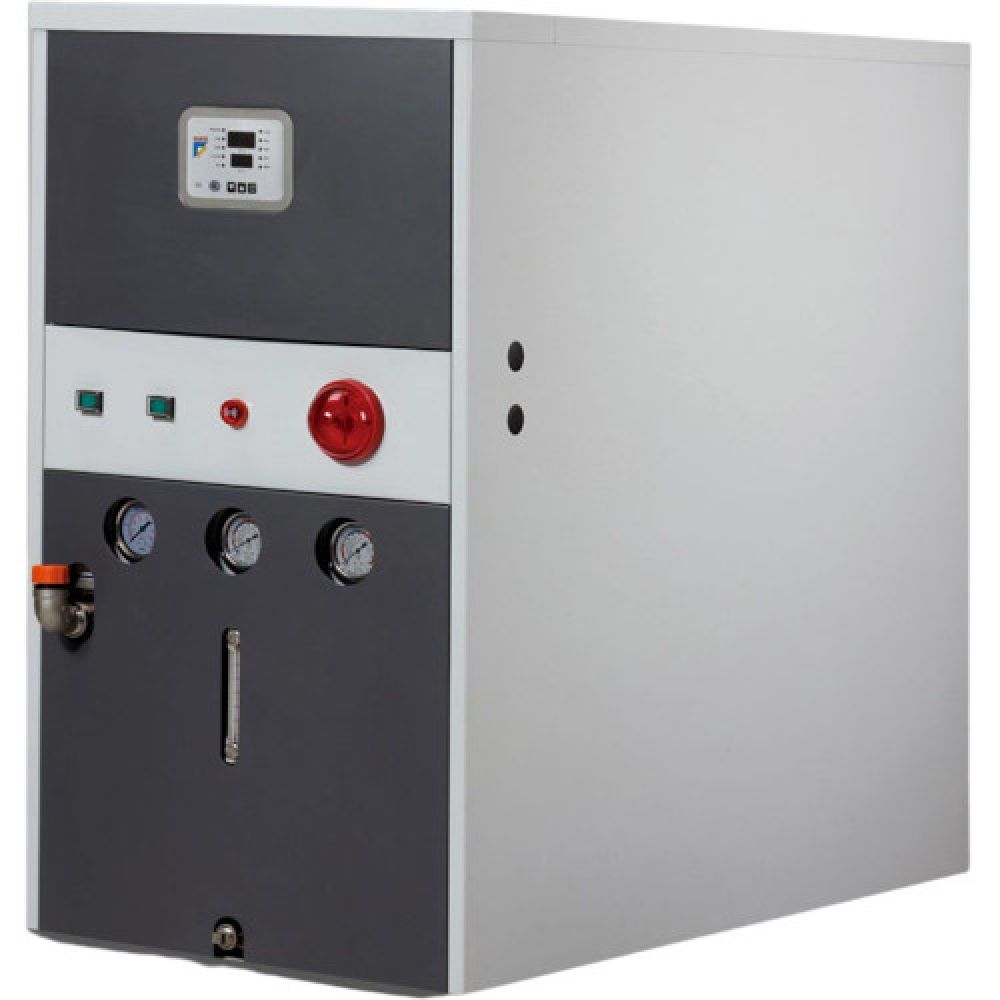

Habor RW Series Water Cooler

Habor

View all specifications

RW Series

Water Heat Exchanger

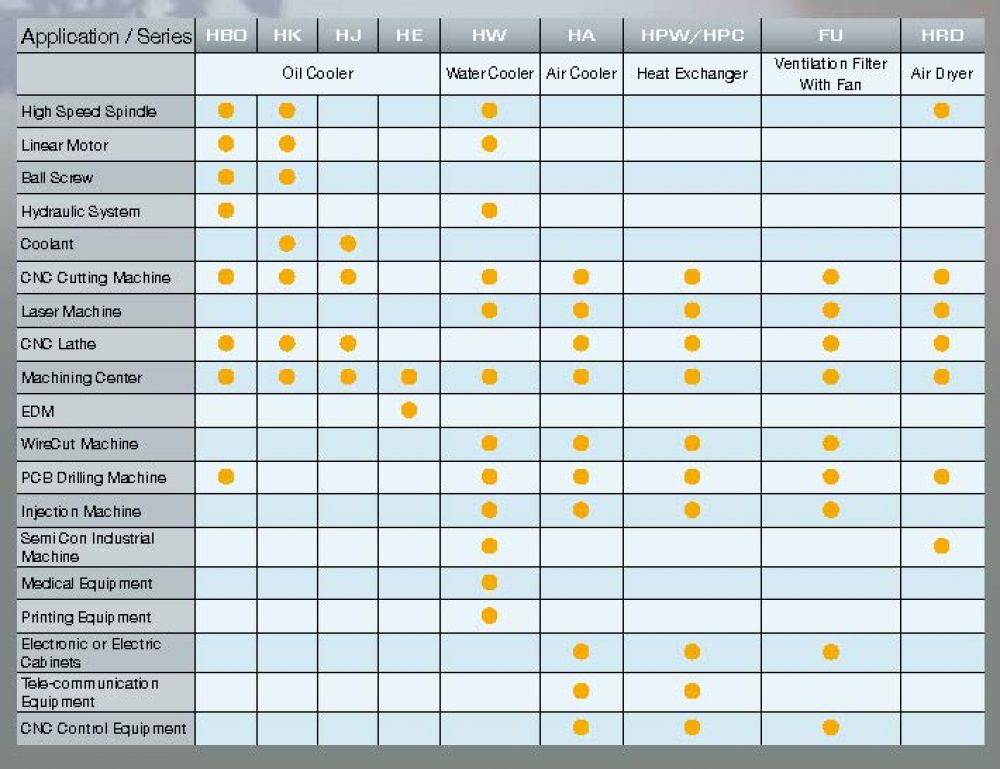

Habor chillers (utilised in both oil and water-cooling installations) are manufactured in Taiwan. The Habor range of chillers is broad and can be found in multiple applications including, precision CNC machine tools & spark errosion processes (for cooling their hydraulic systems and cooling of cutting fluids.

The Habor chillers have been precision engineered to deliver accurate fluid temperature control for optimal performance and reliability.

The RW range is a water cooled heat exchanger unit.

Features:

Precision temperature control for industrial machines to improve production efficiency.
Stainless steel construction for use with water
Multi safety features for safe operation
No requirement for cooling tower
No requirement for heat exhaust

Looking to repair your chiller?

We offer a comprehensive range of spare parts to repair your existing Habor chiller unit . Please call +44(0)1172 130042 or Email with your chiller part and serial number for availability.

Downloads & Datasheets

Habor RW Catalogue

Model Number		RW-3RPTS	RW-4RPTS	RW-5RPTS	RW-7.5RPTS
Cooling capacity	KCAL/H. 50/60Hz	7000/9000	10000/12000	12500/15000	18600/22500
	W. 50/60Hz	8700/10500	11600/14000	14500/17500	21600/26100
	BTU/H. 50/60Hz	30000/36000	40000/48000	50000/60000	74000/89000
Temperature controller	A	Fixed temperature control type (Setting range 10~40°C)
Temperature controller	B	Differential temperature control type (tracing ambient.machine body temperature, setting range -9.9~+9.9°C
Power source		3Ø 200~230V 5060Hz
Pump	W	845/1280	860/1510
	Max flow rate (L/min)	40/50	80/100
	Max liquid lift (M)	39/56	23/34
Min flow requirement of cooling water (L/min)		40		70
Liquid inlet diameter		PT 3/4"	PT 1"		PT 1-1/4"
Liquid outlet diameter		PT 3/4"	PT 1"		PT 1-1/4"
Cooling water inlet diameter		PT 3/4"	PT 1"		PT 1-1/4"
Cooling water outlet diameter		PT 3/4"	PT 1"		PT 1-1/4"
Water tank capacity		65L	100L		170L
Dimension WxDxH (mm)		553x624x840	708x738x955		890x890x1255
Weight (kg)		154	217		406
Noise level (dB)		Below 80 dB(A)
