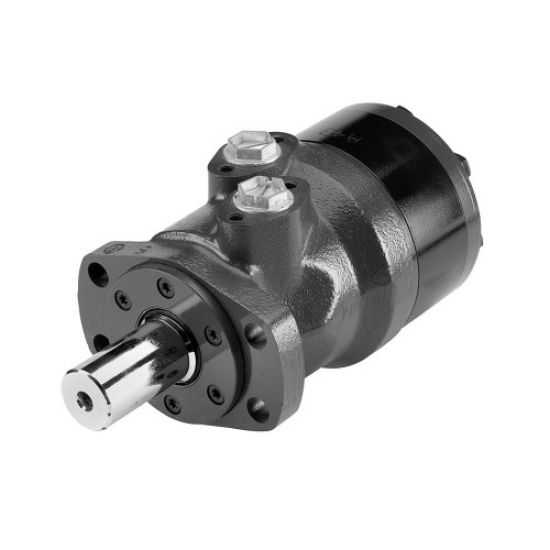

Sauer Danfoss OMR- Orbital Motors

Sauer Danfoss

View all specifications ~ scroll down to find the part you need ~

Made by Sauer Danfoss a world leader within production of low speed orbital motors with high torque. Appealing to a large number of applications and a part of the program is characterised by motors that can be adapted to the following applications:

Construction
Agricultural
Material handling & Lifting
Forestry
Lawn & turf equipment
Special purpose
Machine tools & stationary
Marine equipment

We can offer more than 3,000 different orbital motors, categorised in types, variants and sizes (including different shaft versions, motor sizes and torques).

Characteristic features:

Smooth running over the entire speed range
Constant operating torque over a wide speed range
Long life under extreme operating conditions
High return pressure without the use of drain line (High pressure shaft seal)
High efficiency
High starting torque
Robust and compact design
High radial and axial bearing capacity
For applications in both open and closed loop hydraulic systems
Suitable for a wide variety of hydraulics fluids

Downloads & Datasheets

Sauer Danfoss - OMR - Orbital Motor - Datasheet

Continuous Values

Model	Geometric Displacement	Max Speed	Max Torque	Max Output	Max Pressure Drop	Max Oil Flow
OMR 50	51.6 cm³	775 min¹	100 Nm	7.0 Kw	140 bar	40 l/min
OMR 80	80.3 cm³	750 min¹	195 Nm	12.5 Kw	175 bar	60 l/min
OMR 100	99.8 cm³	600 min¹	240 Nm	13.0 Kw	175 bar	60 l/min
OMR 125	125.7 cm³	475 min¹	300 Nm	12.5 Kw	175 bar	60 l/min
OMR 160	159.6 cm³	375 min¹	300 Nm	10.0 Kw	130 bar	60 l/min
OMR 200	199.8 cm³	300 min¹	300 Nm	8.0 Kw	110 bar	60 l/min
OMR 250	249.3 cm³	240 min¹	300 Nm	6.0 Kw	80 bar	60 l/min
OMR 315	315.7 cm³	190 min¹	300 Nm	5.0 Kw	70 bar	60 l/min
OMR 375	372.6 cm³	160 min¹	300 Nm	4.0 Kw	55 bar	60 l/min

Intermittent Values

Model	Geometric Displacement	Max Speed	Max Torque	Max Output	Max Pressure Drop	Max Oil Flow
OMR 50	51.6 cm³	970 min¹	130 Nm	8.5 Kw	175 bar	50 l/min
OMR 80	80.3 cm³	940 min¹	220 Nm	15.0 Kw	200 bar	75 l/min
OMR 100	99.8 cm³	750 min¹	280 Nm	15.0 Kw	200 bar	75 l/min
OMR 125	125.7 cm³	600 min¹	340 Nm	14.5 Kw	200 bar	75 l/min
OMR 160	159.6 cm³	475 min¹	390 Nm	12.5 Kw	175 bar	75 l/min
OMR 200	199.8 cm³	375 min¹	390 Nm	10.0 Kw	140 bar	75 l/min
OMR 250	249.3 cm³	300 min¹	380 Nm	8.0 Kw	110 bar	75 l/min
OMR 315	315.7 cm³	240 min¹	420 Nm	6.5 Kw	100 bar	75 l/min
OMR 375	372.6 cm³	200 min¹	430 Nm	6.0 Kw	85 bar	75 l/min
