Sauer Danfoss OMV, OMVS & OMVW - Orbital Motors

Sauer Danfoss

View all specifications ~ scroll down to find the part you need ~

Made by Sauer Danfoss a world leader within production of low speed orbital motors with high torque. Appealing to a large number of applications and a part of the program is characterised by motors that can be adapted to the following applications:

Construction
Agricultural
Material handling & Lifting
Forestry
Lawn & turf equipment
Special purpose
Machine tools & stationary
Marine equipment

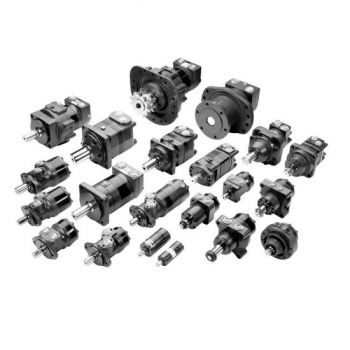

We can offer more than 3,000 different orbital motors, categorised in types, variants and sizes (including different shaft versions, motor sizes and torques).

Characteristic features:

Smooth running over the entire speed range
Constant operating torque over a wide speed range
Long life under extreme operating conditions
High return pressure without the use of drain line (High pressure shaft seal)
High efficiency
High starting torque
Robust and compact design
High radial and axial bearing capacity
For applications in both open and closed loop hydraulic systems
Suitable for a wide variety of hydraulics fluids

Downloads & Datasheets

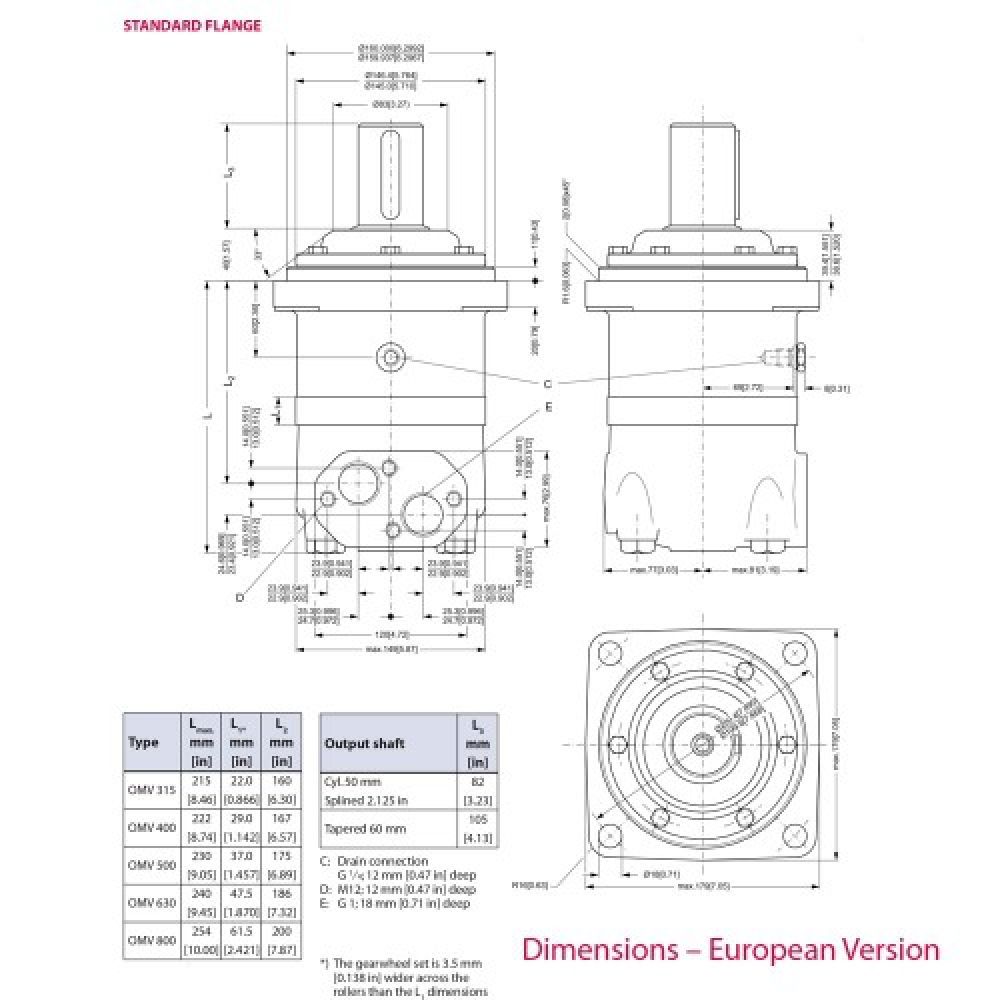

Sauer Danfoss - OMV - Orbital Motor - Datasheet

Continuous Values

Model	Geometric Displacement	Max Speed	Max Torque	Max Output	Max Pressure Drop	Max Oil Flow
OMV 315	314.5 cm³	510 min¹	920 Nm	42.5 Kw	200 bar	160 l/min
OMV 400	400.9 cm³	500 min¹	1180 Nm	53.5 Kw	200 bar	200 l/min
OMV 500	499.6 cm³	400 min¹	1460 Nm	53.5 Kw	200 bar	200 l/min
OMV 630	629.1 cm³	315 min¹	1660 Nm	48.0 Kw	180 bar	200 l/min
OMV 800	801.8 cm³	215 min¹	1880 Nm	42.5 Kw	160 bar	200 l/min

Intermittent Values

Model	Geometric Displacement	Max Speed	Max Torque	Max Output	Max Pressure Drop	Max Oil Flow
OMV 315	314.5 cm³	630 min¹	1110 Nm	51.0 Kw	240 bar	200 l/min
OMV 400	400.9 cm³	600 min¹	1410 Nm	64.0 Kw	240 bar	240 l/min
OMV 500	499.6 cm³	480 min¹	1760 Nm	64.0 Kw	240 bar	240 l/min
OMV 630	629.1 cm³	380 min¹	1940 Nm	56.0 Kw	210 bar	240 l/min
OMV 800	801.8 cm³	300 min¹	2110 Nm	48.0 Kw	180 bar	240 l/min
